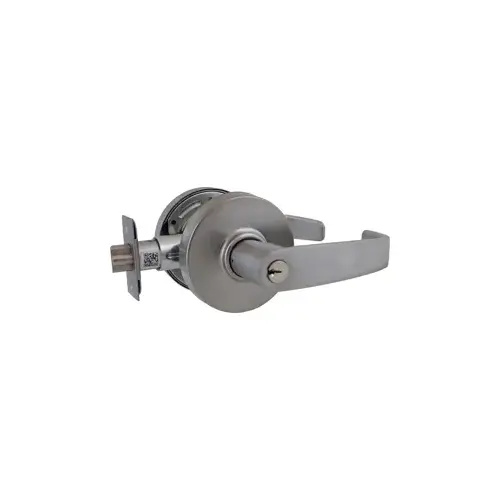

Sargent 28-7G05 LL 26D 7 Line G05 Entrance/Office Lever Lockset, Satin Chrome
Item #: 28-7G05 LL 26D by Sargent
In Stock $302.71 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- For Doors: 1-3/4" (44mm) Thick Door standard Specify 1- for 1-3/8" (35mm) Thick Door
- Backset: 2-3/4" (70mm) Backset standard. Specify 20- for 2-3/8" (60mm) Backset
- Cylindrical Housing: Steel, zinc dichromate finish
- Front: Wrought brass or stainless steel; Standard — 2-1/4" (57mm) x 1-1/8" (29mm), with 2-3/4" (70mm) backset Specify 20- for 2-1/4" (57mm) x 1" (25mm), with 2-3/8" (60mm) backset
- Strike: Wrought brass or stainless steel 2-3/4" Curved Lip Strike standard 4-7/8" Curved Lip (28-) and 2-1/4" Full Lip (14-) Strikes Optional
- Hand: Non-handed — B, L, P lever designs Handed — G and Y Coastal Series lever designs
- Latch: Brass 1/2" (13mm) throw
- Keys: Two, nickel silver
- Cylinder: Brass, 6-pin, LA keyway standard Can be master keyed or grand master keyed
- Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL 14, 15, 20D, 26 & 26D
- Door Prep: ANSI A115.2; Specify 20- for 160 Prep
Finish
Satin Chrome
Function
G05-Entry/Office
Design
L Lever and L Rose
Strike
ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Backset
2-3/4 Inch
Keying
Keyed Different
Cylinder Type
Conventional Cylinder
Fire Rated
No
Origin
USA
BAA Qualified
Yes
Package Height
4.25"
Package Length
8.25"
Package Volume
249.8203125
Package Width
7.125"
ANSI Function
F81
Bolt Protection
1/2"
Case Height
9"
Case Volume
2801.25
Case Width
15"
Dust Box
None
Key(s)
Cut
Latch Backset Dim
2-3/4"
Latch Number
07-2430
Latch Type
Deadlocking/Guarded
Lever/Knob Design
L - Lever
Lock Face Size
2-1/4" x 1-1/8"
Package Qty
1
Rose/Escutcheon Design
L - Rose
Screws
Combination
Special Marks
Conventional cylinder
Strike Height
4-7/8"
Strike Number
808 ANSI Strike
Strike Type
ANSI Curved Lip
Strike Width
1-1/4"
Grade
ANSI/BHMA Grade 2
Thickness
1-3/8" - 1-3/4"
Application
Standard Duty Commercial Interior and Exterior Applications in Public Buildings; Medical Offices; Hotels/Motels; Government Facilities
Hand
Not Handed
Color Code
626/US26D
Case Length
20.75"
Keyway
Sargent LA
Finish Description
Satin Chrome
Keyblank Grouping
SRGT-LA-6-1
Lever Style
L-Lever
Product Type
Cylindrical Lock
Rose/Escutcheon Trim
L-Rose
Projection
2.5000
Lever Length
5.0000
Door Thickness
1-3/4 inch
Bore Size
2.1250
ADA Approved
False
Keying Charges
CCAM
Warranty
5 year limited
Handle Type
Lever
Rose Diameter
3-3/8 Inch
Latch Throw
1/2 Inch
ADA Compliant
YES
Finish Family
Satin Chrome
Strike Size
4-7/8" x 1-1/4"
Cylinder Material
Brass
Standards
ANSI/BHMA A156.2 (2017) Series 4000 Grade 1; UL and cUL Listed; ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies
Cylinder Type Used
Conventional
Function Description
Turn button on inside locks outside knob/lever until unlocked by key or by rotating inside knob/lever. Inside knob/lever always free.
Front Size
2-1/4" x 1-1/8"
Function Family
Entry/Entrance/Office
Strike Lip
1-1/4 Inch
Product Projection
2-1/2 Inch
Trim Material
Solid Cast (Lever); Heavy Wrought (Rose)
Features
Solid Feel and Precise Lever Action; Levers are Solid, One-Piece Cast Construction; Deadlocking Latch; Turn Button Must be Released Manually; Push Button Released by Key Outside or Lever Inside
Door Cross Bore
2.125 Inch
Manufacturer Parent
Assa Abloy
Lever Length-Inches
5 Inch
Latch Corner
Square
Knob/Lever Size
5 Inch
Latch Bolt Material
Brass
Lever Style Family
Straight Return Lever
Sub-Series
CL_Cylindrical_Locks_sargent_210
Alternate Part Number-1
126565
As the best overall lock in the Grade 2 class, the 7 Line® key-in-lever lock exceeds ANSI/BHMA A156.2 standards for cycling and durability. The 7 Line is designed for standard duty commercial interior and exterior applications in public buildings, medical offices, hotels/motels and government facilities.
Features:- Cycle Test exceeds ANSI/BHMA A156.2 Grade 2 requirements
- Fits modified 161 door preps
- 10 standard functions available
- 5-year limited warranty
- Internal through bolts supply strength and stability without requiring additional door preparation
- Incorporates non-handed design for ease of installation and efficient warehousing
- Security key systems available and vandal resistant trim optional. Levers are solid one piece cast construction.
- Certified ANSI A156.2 Series 4000 - Grade 2
- UL listed to U.S.A. and Canadian safety standards Listed for 3 Hour Doors
- Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies
- All levers conform to ADA requirements for barrier-free accessibility
- Levers (L and P) conform to California Administrative Code Title 19 and 24
- 1-3/4" (44mm) Thick Door standard
- 2-3/4" (70mm) Backset standard
- Steel, zinc dichromate finish
- Wrought brass or stainless steel;
- Standard — 2-1/4" (57mm) x 1-1/8" (29mm), with 2-3/4" (70mm) backset
- Wrought brass or stainless steel
- 2-3/4" Curved Lip Strike standard
- Non-handed — B, L, P lever designs
- Handed — G and Y Coastal Series lever designs
- Brass 1/2" (13mm) throw
- Two, nickel silver
- Brass, 6-pin, LA keyway standard Can be master keyed or grand master
- 03, 04, 09, 10, 10B, 10BE, 10BL 14, 15, 20D, 26, 26D & BSP
- ANSI A115.2; Specify 20- for 160 Prep
- Cycle Test: Exceeds 2-1/2 times ANSI/ BHMA
- A156.2 Grade 2 cycle requirements
- 5 Year limited warranty. No service required
- Installs in 1 minute or less
- Non-handed design for ease of installation and efficient warehousing with standard lever designs (Except G&Y)
- User friendly packaging
- User friendly instruction
- Convenient installation diagram on box
- Solid feel and precise lever action
- Decorative Levers
- Coastal Series designs
- Gulfport and Yarmouth
- Levers are solid one piece cast construction
- Fits modified 161 door preps. Internal through-bolts supply strength and stability without requiring additional door preparation
- 12 architectural grade finishes
- 10 standard functions
- SARGENT uses engineered solutions and flexible manufacturing processes to accommodate special applications
- Security key systems available
- (Signature, XC, Keso, and Keso F1)
- Standard duty commercial interior & exterior doors
- Offices
- Commercial interiors
- Medical clinics
- Government facilities
- Public buildings
- SARGENT’s revolutionary MicroShield® available.
- This antimicrobial silver-based finish coating permanently suppresses the growth of bacteria, algae, fungus, mold and mildew.
- EPA and NSF approved and FDA listed
