The CRL BM Series of Pull Handle/Towel Bar Combinations With Metal Washers are provided with all the hardware required for installation. They are constructed of 1.5 mil thick heavy brass tubing. Each set consists of a pull handle/towel bar set, along with decorative metal back-up washers and plastic washers to protect against glass-to-metal contact.
SPECIFICATIONS:
Material: 3/4" (19 mm) Diameter Brass Tubing (1.5 mil thick), 1-1/4" (32 mm) Diameter Metal Washers
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Hole Diameter Required: 1/2" (12 mm)
Center-to-Center Hole Spacing:
6" Pull = 6" (152 mm)
8" Pull = 8" (203 mm)
12" Pull = 12" (305 mm)
12" Towel Bar = 12" (305 mm)
18" Towel Bar = 18" (457 mm)
20" Towel Bar = 20" (508 mm)
22" Towel Bar = 22" (559 mm)
24" Towel Bar = 24" (610 mm)
AVAILABLE SIZES:
Cat. No. BM6X12 6" Pull/12" Towel Bar
Cat. No. BM6X18 6" Pull/18" Towel Bar
Cat. No. BM6X22 6" Pull/22" Towel Bar
Cat. No. BM6X24 6" Pull/24" Towel Bar
Cat. No. BM8X18 8" Pull/18" Towel Bar
Cat. No. BM8X20 8" Pull/20" Towel Bar
Cat. No. BM8X22 8" Pull/22" Towel Bar
Cat. No. BM8X24 8" Pull/24" Towel Bar
Cat. No. BM12X24 12" Pull/24" Towel Bar
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

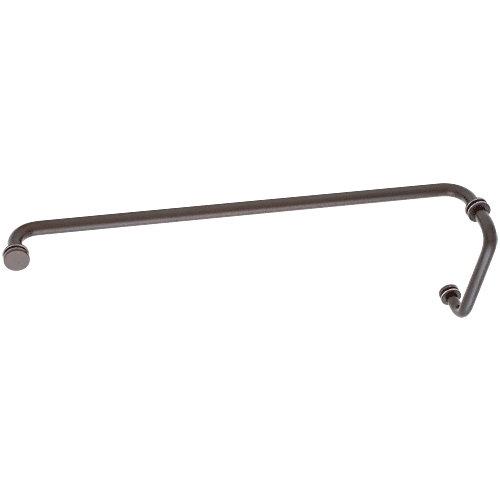

CRL BM6X240RB Oil Rubbed Bronze 6" Pull Handle and 24" Towel Bar BM Series Combination With Metal Washers
Item #: BM6X240RB by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Use Monolithic Tempered Glass
- Attractive Metal Washers
- Shower Enclosure, Along with a Convenient Towel Bar for the Outside
Metal Washer Diameter
1-1/4 in (31.75 mm)
Tube Diameter
3/4 in (19 mm)
Thread Size
1/4"-20
Handle
6" (152 mm)
Projection From Surface
2-1/2" (63.5 mm)
Towel Bar
24" (610 mm)
Finish
Oil Rubbed Bronze
Mounting Type
Glass Mount - Back To Back
Material
Brass
Construction
Tubular
Glazing Thickness
1/4 To 1/2
Finish/Color
Oil Rubbed Bronze
Series
BM
Style Washers
Yes
Towel Bar Mounting Center To Center (Inches)
24
Pull Mounting Center To Center (Inches)
6
Style Washer Diameter (Inches)
1-1/4
Diameter
3/4
Mounting Style
Glass Mount -Towel Bar / Pull
Towel Bar Mounting Center To C
24 Inches
Pull Mounting Center To Center
6 Inches
Diameter (Inches)
3/4
Towel Bar Mounting Center To Center
24 in. (610 mm)
Style Washer Diameter
1-1/4 in. (32 mm)
Product Overview
The CRL BM Series of Pull Handle/Towel Bar Combinations With Metal Washers are provided with all the hardware required for installation. They are constructed of 1.5 mil thick heavy brass tubing. Each set consists of a pull handle/towel bar set, along with decorative metal back-up washers and plastic washers to protect against glass-to-metal contact.
SPECIFICATIONS:
Material: 3/4" (19 mm) Diameter Brass Tubing (1.5 mil thick), 1-1/4" (32 mm) Diameter Metal Washers
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Hole Diameter Required: 1/2" (12 mm)
Center-to-Center Hole Spacing:
6" Pull = 6" (152 mm)
8" Pull = 8" (203 mm)
12" Pull = 12" (305 mm)
12" Towel Bar = 12" (305 mm)
18" Towel Bar = 18" (457 mm)
20" Towel Bar = 20" (508 mm)
22" Towel Bar = 22" (559 mm)
24" Towel Bar = 24" (610 mm)
AVAILABLE SIZES:
Cat. No. BM6X12 6" Pull/12" Towel Bar
Cat. No. BM6X18 6" Pull/18" Towel Bar
Cat. No. BM6X22 6" Pull/22" Towel Bar
Cat. No. BM6X24 6" Pull/24" Towel Bar
Cat. No. BM8X18 8" Pull/18" Towel Bar
Cat. No. BM8X20 8" Pull/20" Towel Bar
Cat. No. BM8X22 8" Pull/22" Towel Bar
Cat. No. BM8X24 8" Pull/24" Towel Bar
Cat. No. BM12X24 12" Pull/24" Towel Bar
