30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
- Available in Several Beautiful Finishes
- Adjustable Wall Mount Full Back Plate
- Use Monolithic Tempered Glass
2 Lb (907g)
Oil Rubbed Bronze
1/4 To 1/2
Maximum Door Width
Oil Rubbed Bronze
5 Degree Pre-Set
Maximum Door Weight - 3 Hinges (Pounds)
Maximum Door Weight - 2 Hinges (Pounds)

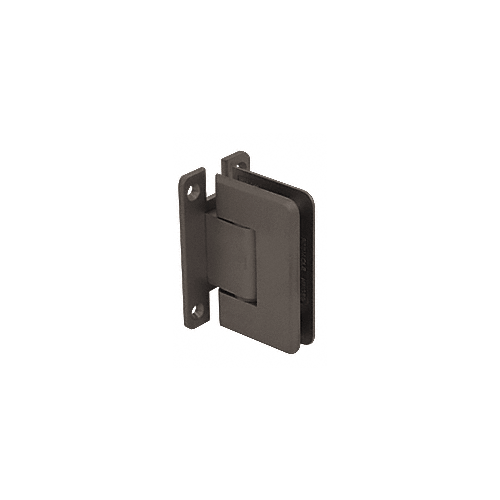

The CRL Adjustable Cologne Series has taken our popular Cologne Hinge to a new level. Adjustment to accommodate the desired angle (up to 90º) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired angle. The door can swing 90º inward and also 90º outward (adjusting angle from factory set position will reduce 90º swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5º inside the shower area, thus having the door close snugly against the jamb.
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8" and 1/2" glass (10 and 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum width of 36" (914 mm).
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Adjustable to Any Angle Up to 90º without Having to Take Door Down
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out (at factory set position).
Closing Type: Self-Centering when within 15º of Closed Position
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
NOTE: Door Glass Width May Require Alteration From Standard Clearance Deductions When Adjusting Angles. Call for Details.
Custom finishes are available on request by contacting DK Hardware Sales.
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
