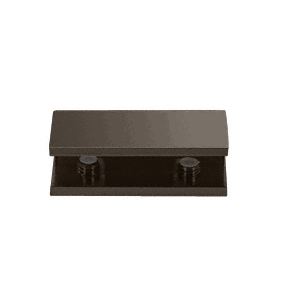

CRL NDC40RB Oil Rubbed Bronze No-Drill Fixed Panel Glass Clamp

  • Made of Solid Brass
  • No Glass Fabrication Required
  • Includes Clear Gaskets and Mounting Screws
  • No-Drill Fixed Panel Clamps Allow Securing of Fixed Panels of Glass, But Only Under Certain Circumstances
  • Use Monolithic Tempered Glass
See Full Product Description
SALE

$24.20 /each

Qty

In stock
Quick Shipping

Usually ships in 1 business day*

SALE

Qty

In stock Quick Shipping

Usually ships in 1 business day*

SALE
Have a Question?

Chat with our Expert


Description

  • Made of Solid Brass
  • No Glass Fabrication Required
  • Includes Clear Gaskets and Mounting Screws
  • No-Drill Fixed Panel Clamps Allow Securing of Fixed Panels of Glass, But Only Under Certain Circumstances
  • Use Monolithic Tempered Glass

  • Product Description
  • Technical Details 5
  • Product Reviews 10
  • Product Q&A 1
  • Large Order Quote
  • Shipping / Return Policy

Product Description

Minimum Order

1 Each

Width

2-3/8" (60 mm)

O.D. Depth

3/4 in (19 mm)

O.D. Height

1-1/8 in (28 mm)

Depth

1-3/16" (30.2 mm)

Size

2-3/8" (60 mm) Wide x 1-1/8" (28 mm) High

Glass Thickness Range

3/8" or 5/16" (10 or 8 mm)

Height

1-1/8" (28 mm)

Finish

Oil Rubbed Bronze

  • Made of Solid Brass
  • No Glass Fabrication Required
  • Includes Clear Gaskets and Mounting Screws
  • No-Drill Fixed Panel Clamps Allow Securing of Fixed Panels of Glass, But Only Under Certain Circumstances
  • Use Monolithic Tempered Glass
Made of solid brass, and available in numerous stock finishes, these CRL No-Drill Fixed Panel Clamps provide an alternative to Clamps requiring drilled holes or notches in the glass. Two nylon tipped set screws are tightened to secure the glass. Mounting screws are also provided for the wall/ceiling/floor. Silicone must also be used for reinforcement along all glass edges where Clamps are used.
IMPORTANT NOTE: Do not hinge a door off a fixed panel using these Clamps. Clamps must be used on minimum of three sides of fixed panel (top, bottom, and at least one side). Silicone must be used for reinforcement along the entire edge of the glass where Clamps are used. It is the responsibility of the installer to determine if adequate structural backing support is being used.
SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm)
Material: Solid Brass
Includes: Mounting Screw and Clear Gaskets
No Glass Fabrication Required Important Notes: Do not hinge a door off a fixed panel using these Clamps. Clamps must be used on minimum of three sides of fixed panel (top, bottom, and at least one side). Silicone must be used for reinforcement along the entire edge of the glass where Clamps are used. It is the responsibility of the installer to determine if adequate structural backing support is being used.
