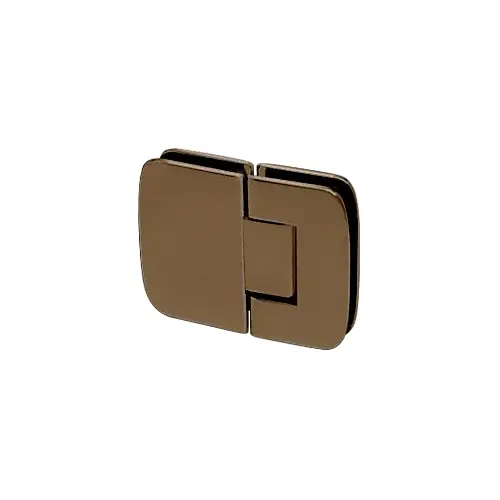

CRL R0M1800RB Oil Rubbed Bronze Roman 180 Series 180 Degree Glass-To-Glass Standard Hinge

Item Discontinued!
1 reviews

Item #: R0M1800RB by CR Laurence

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you are satisfied with our products and excellent customer service.

CRL R0M1800RB Oil Rubbed Bronze Roman 180 Series 180 Degree Glass-To-Glass Standard Hinge

Item Discontinued!
1 1 reviews

Item #: R0M1800RB by CR Laurence

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
  • Use Monolithic Tempered Glass
  • 180 Degree Glass-to-Glass
  • Available in Several Beautiful Finishes
  • Self-Centering with Reversible 5 Degree Pivot Pin
  • Three Year Warranty

Minimum Order

1 Each

Shipping Weight

2 Lb (907g)

Height

3-1/2" (89 mm)

Width

2-3/16" (56 mm)

Finish

Oil Rubbed Bronze

CRL Roman Hinges contain the same internal mechanism as our popular Geneva Hinges, thus providing the same reliability and high performance. The rounded corners of the hinge plates provide a nice blend in a soft décor. Roman Hinges accommodate 5/16" (8 mm) to 1/2" (12 mm) thick tempered safety glass, and are self-centering when within 15 degree of the closed position. Roman Hinges are constructed of solid brass, and have stainless steel plunger tips, pins, and springs to ensure long service life and reliable door closure. Roman Hinges contain the same Reversible Pivot Pin used in our Geneva Series and many other hinges. A Custom Pivot Pin (GENP1N) is also available for "off-angle" installations.
STANDARD REVERSIBLE PIVOT PIN: Each Roman Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Roman Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).
Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with maximum door width of 28" (711 mm).
Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. R0M13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
Custom finishes are available on request. Contact Technical Sales Shower Door Department. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
