CRL Square 180 Degree Glass-to-Glass Movable Transom Clamps allow the rotation of a movable transom off of an inline fixed glass panel. To assure balanced movement the Clamp must be centered on the transom. Maximum movable transom size is 16" x 30" (406 x 762 mm).
NOTE: Replacement Parts are Cat. No.'s 90295A120 (Nylon Washer), 211039 (10-32 x 3/4" Flat Head Phillips Screw), and 193004 (10-32 Nylon Lock Nut).
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 Require 3/4" (19 mm) Holes; SGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Mounting Screws (for Wall Clamps) and Gaskets
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

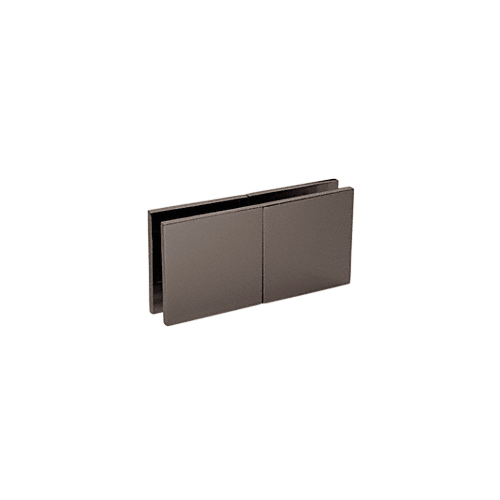

CRL SGC1880RB Oil Rubbed Bronze Square 180 Degree Glass-to-Glass Movable Transom Clamp
Item #: SGC1880RB by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Use Monolithic Tempered Glass
- For 3/8" to 1/2" (10 to 12 mm) Thick Glass
- Glass Transom Swivels to Allow Release of Steam
- Solid Brass Material
- Wall Mount, and 180 Degree Models Available
Overall Width
4-1/16 in (103 mm)
Size
4-1/16" (103 mm) Wide x 2" (51 mm) High
Height
2
Hole Required in Glass
3/8" to 1/2" (10 to 12 mm)
Finish
Oil Rubbed Bronze
Mounting Type
Pivoting Glass To Glass
Material
Brass
Width
4-1/16
Glazing Thickness
3/8 to 1/2
Finish/Color
Oil Rubbed Bronze
Glass To Glass Angle (Degrees)
180
Enclosure Type
Niche, Tailor Made Solutions
Design Style
Squared
Product Overview
CRL Square 180 Degree Glass-to-Glass Movable Transom Clamps allow the rotation of a movable transom off of an inline fixed glass panel. To assure balanced movement the Clamp must be centered on the transom. Maximum movable transom size is 16" x 30" (406 x 762 mm).
NOTE: Replacement Parts are Cat. No.'s 90295A120 (Nylon Washer), 211039 (10-32 x 3/4" Flat Head Phillips Screw), and 193004 (10-32 Nylon Lock Nut).
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 Require 3/4" (19 mm) Holes; SGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Mounting Screws (for Wall Clamps) and Gaskets
