Oil Rubbed Bronze Square Beveled 180 degree Glass-to-Glass Movable Transom Clamp

Roll over image to zoom in

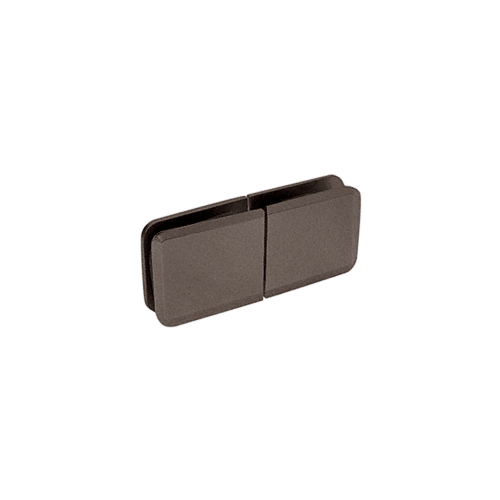

CRL BGC1880RB Oil Rubbed Bronze Square Beveled 180 degree Glass-to-Glass Movable Transom Clamp

Item #: BGC1880RB by CR Laurence

See reviews See reviews

In Stock $28.31 /each

SAVE UP TO 2.83

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Use Monolithic Tempered Glass
  • For 3/8" to 1/2" (10 to 12 mm) Thick Glass
  • Glass Transom Swivels to Allow Release of Steam
  • Solid Brass Material
  • Wall Mount, and 180º Models Available

Leg Height

2 in (51 mm)

Overall Width

4-1/16 in (103 mm)

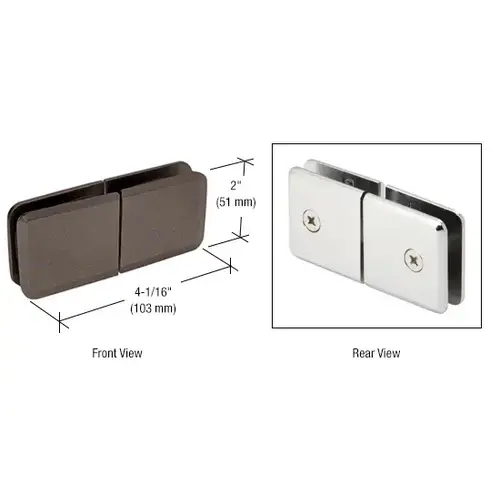

Size

4-1/16" (103 mm) Wide x 2" (51 mm) High

Hole Required in Glass

5/16" to 1/2" (8 to 12 mm)

Finish

Oil Rubbed Bronze

Mounting Type

Glass To Glass

Material

Brass

Glazing Thickness

3/8 to 1/2

Finish/Color

Oil Rubbed Bronze

Mounting Style

Glass To Glass


CRL Beveled 180º Glass-to-Glass Movable Transom Clamps allow the rotation of a movable transom off of an inline fixed glass panel. This style Clamp can also be used in combination with our Cat No. BGC186 Wall Mount Movable Transom Clamp. Clamp must be centered on the transom to achieve balanced movement.
Replacement parts are Cat. Nos. 90295A120 (Nylon
Washer), 211039 (10-32 x 3/4" Flat Head Phillips Screw), 193004 (10-32 Nylon Lock Nut), and BGCU1G (Gasket).
NOTE: Maximum transom size is 16" x 30" (406 x 762 mm) wide. Larger transoms require the use of pivot hinges used as transom clamps. .
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (3 to 12 mm)
Glass Fabrication Required: BGC180, BGC135, BGC90, and BGC186 Require 3/4" (19 mm) Holes; BGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Gaskets

.
