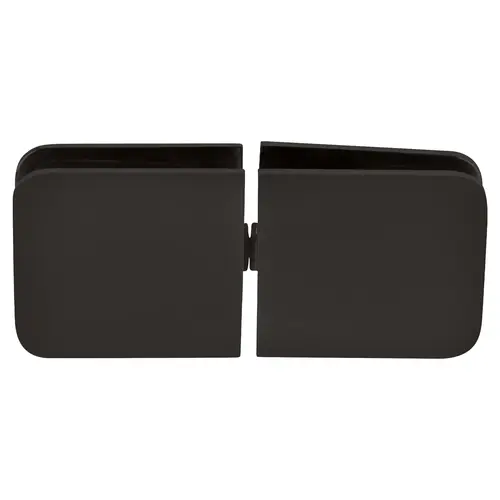

CRL GCB1880RB Oil Rubbed Bronze Traditional Style Movable Glass-To-Glass Transom Glass Clamp
Item #: GCB1880RB by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Use Monolithic Tempered Glass
- For 5/16" to 1/2" (8 to 12 mm) Thick Glass
- Glass Transom Swivels to Allow Release of Steam
- Glass-to-Glass Application
- Special Nylock Nut Allows Pivoting of Clamps
Height
1-3/4" (44.5 mm)
Hole Size Required in Fixed Panel Notch in Transom
5/8 or 3/4 in (16 to 19 mm)
Width
3-15/16 in (100 mm)
Size
3-15/16" (100 mm) Wide x 1-3/4" (44 mm) High
Finish
Oil Rubbed Bronze
Mounting Type
Glass To Glass
Material
Brass
Glazing Thickness
5/16 To 1/2
Finish/Color
Oil Rubbed Bronze
Glass To Glass Angle (Degrees)
180
Mounting Style
Glass To Glass
The Traditional 180 Degree Glass-to-Glass Movable Transom Clamp is designed to pivot transom panels above the shower door. Clamp should be centered on glass for optimum performance. Replacement parts are Cat. Nos. 90295A120 (Nylon Washer), 193004 (Nylon Lock Nut), 211039 (Flat Head Screw), and UCG77 (Gaskets).
SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Glass Fabrication Required: 5/8" or 3/4" (16 or 19 mm) diameter hole in fixed panel and a notch in transom.
Includes: Gaskets
NOTE: Maximum transom size is 12" x 30" (305 x 762 mm) wide. Larger transoms require the use of Square or Beveled Transom Clamps, or pivot hinges used as movable transom clamps. Call for details.
Product Warning:
Maximum transom size is 12" (305 mm) high x 30" (762 mm) wide. Larger transoms require the use of pivot hinges used as a transom clamp. Contact Technical Sales Shower Door Department for details.
