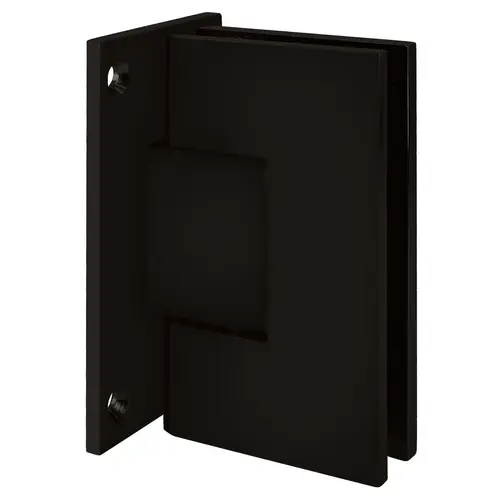

CRL V1E0670RB Oil Rubbed Bronze Vienna Wall Mount Full Back Plate Positive Close Hinge
Item #: V1E0670RB by CR Laurence
In Stock $100.19 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Use Monolithic Tempered Glass
- Other Finishes Available Upon Special Order
- Special Grooved Internal Pivot Pin Allows Positive and Precise Closing Action
- Stocked in Four Most Popular Finishes
- Stocked in Wall Mount and 180 Degree Glass-to-Glass Models
Shipping Weight
2 lb (907g)
Width
2-1/4
Height
3-15/16
Finish
Oil Rubbed Bronze
Back Plate
Full
Glazing Thickness
3/8, 1/2
Maximum Door Width
36
Adjustable
No
Finish/Color
Oil Rubbed Bronze
Self-Centering
Yes
5 Degree Pre-Set
No
Maximum Door Weight - 3 Hinges (Pounds)
140
Maximum Door Weight - 2 Hinges (Pounds)
110
Mounting Type
Wall Mount
Material
Brass
Positive Close
Yes
Maximum Door Weight - 2 Hinges
110 lbs. (49.9 kg)
Maximum Door Weight - 3 Hinges
140 lbs. (63.5 kg)
Mounting Style
Wall mount
Height (Inches)
3-15/16
Max Dr Weight - 3 Hinges (Lbs)
140
Width - Sidelite Portion (Inch
2-5/16
Max Dr Weight - 2 Hinges (Lbs)
110
Width (Inches)
2-1/4
The Positive Close Vienna Hinge contains an internal grooved pivot pin that allows the door a precise and positive closing action. This is a different closing action than the typical self-centering Vienna Hinges. Stocked in our four most popular finishes, and available in other finishes upon special order.
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 Degrees Inwards and Outwards
Closing Type: Positive Closing to Zero Degrees
Cut-Out Required
Includes: Gaskets, Phillips Screws, Allen Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact DK Hardware Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
.
