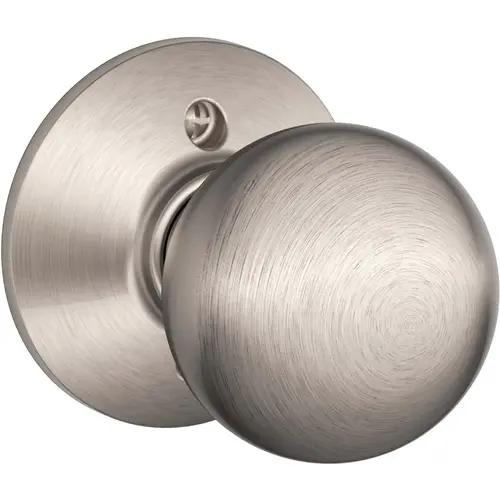

Schlage Residential F170 ORB 619 F170ORB619 Orbit Dummy - Satin Nickel
Item #: F170 ORB 619 by Schlage Residential
UPC #: 043156770922
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Half Dummy Function - Dummy Trim for One Side of Door
- Non-Locking - Ideal for Closets and Rooms Where Locking is Not Needed
- Easy 3-Step Installation, Only a Screwdriver Needed
- Applications: Residential single- and multi-family doors
- Quality Materials and Construction for Exceptional Security
- Lifetime Mechanical & Finish Warranty
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- U.L. Listed: Locks for up to three-hour fire doors available
- Quality Finishes Coordinate with Plumbing and Lighting
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
Finish
Satin Nickel
Function
Dummy/Inactive
Series
F Series
Design
Orbit Knob
Color
Satin Nickel Plated Clear Coated
Color Code
619/US15
Finish Description
Satin Nickel
Knob style
ORB-Orbit
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Grade
ANSI/BHMA Grade 2
Handing
Reversible
Projection
2.8750
Door Thickness
1-3/8" to 1-3/4"
Knob Diameter
2.1250
Included Components
Dummy Lever; Rose; Mounting Hardware
Product Material
Zinc
Box Length
3.8800
Box Width
3.6000
Box Height
2.7700
Application
Residential Single and Multi-Family Doors
Warranty
Lifetime Mechanical/Finish
Bolt Throw
1/2"
Product Height
2-3/4 Inch
ADA Compliant
No
Finish Family
Satin Nickel
Standards
ANSI/BHMA A156.2-2011; ANSI/BHMA A156.39-2015
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Dummy
Product Projection
2-7/8 Inch
Features
Non Locking; Ideal for Closets and Rooms where Locking is Not Needed; Quality Materials and Construction for Exceptional Security; Quality Finishes Coordinate with Plumbing and Lighting
Manufacturer Parent
Allegion
Box Dimensions (L x W x H)
2.77x3.60x3.88"
Knob Style Family
Ball Knob
Sub-Series
F170-ORB
Backset
None
Cylinder Included
No
Cylinder Type
None
Alternate Part Number-1
137677
Knob/Lever Design
Orbit
Latch Bolt Faceplate Size
None
Door Bore Size
None
Lock Category
Handlesets
Door Thickness Min
1-5/8"
Latch Bolt Face Type
None
Door Thickness Max
1-3/4"
Knob/Lever Style
Knob
Collection
Orbit
Package Height
2.86"
Package Length
5.66"
Package Width
4.38"
Item Weight
0.4 lbs
Product Overview
The Schlage Orbit Knob Non-Turning Lock in Satin Nickel is commonly used as a decorative pull for doors that don't require latching. The Orbit knob exemplifies minimalist style with its strong, spherical shape and uncomplicated design – especially when wrapped in our versatile Satin Nickel finish. Plus, it's been designed and tested with strength and durability in mind.
