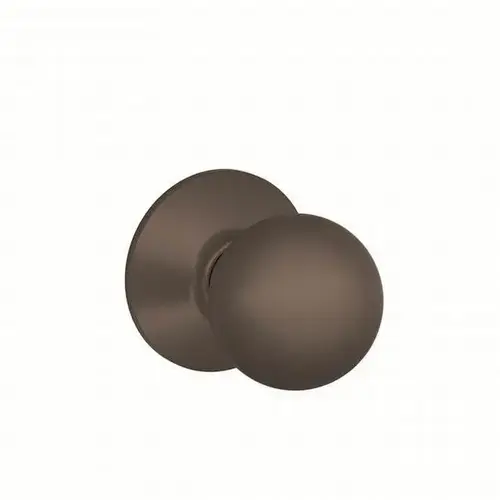

Schlage Residential F59 ORB 613 Orbit Knob Interior Active Trim with 12326 Latch and 10269 Strikes Oil Rubbed Bronze Finish

Inside Trim of Handleset, Orbit Knob, Deadbolt Thumbturn, 613 Oil Rubbed Bronze Finish
F SeriesHandlesets

Your front door is more than just an entrance, it's also a showpiece – one of the first things a guest sees. That's why it's important to choose the right handleset. Schlage offers a wide variety of designs and finishes, from angular to flowing, classic to contemporary, all designed to ensure that your front door is the perfect introduction to your home.

Available Functions: F58 – Handleset/Entrance Lock Exterior:

• Outside grip and deadbolt trim of F60
• Pair with an F59 for a complete handleset

F59 – Handleset/Entrance Lock Interior:

• Inside trim, deadbolt thumbturn, latches, strikes & screws for F60
• Pair with an F58 for a complete handleset

F60 – Single Cylinder Deadbolt/Entrance Lock:

• Deadbolt thrown or retracted by key from outside or by inside thumbturn
• Latch retracted by thumbpiece from outside or by inside knob/lever

F62 – Double Cylinder Handleset/Entrance Lock*:

• Deadbolt thrown or retracted by key from either side
• Latch retracted by thumbpiece from outside or by inside knob/lever

F92 – Inactive Handleset Exterior:

• Outside inactive grip & dummy deadbolt
• Pair with an F94 for a complete inactive handleset

F94 – Inactive Handleset Interior:

• Inside inactive knob/lever, blank deadbolt trim & screws
• Pair with an F92 for a complete inactive handleset

F93 – Inactive Handleset:

• For use as door pull or as decorative trim on inactive leaf of pair of doors
• Fixed thumbpiece and inside knob/lever
• Decorative deadbolt with inside trim

FE285 - Lower Half - Front Entry Set:

• Combine with Electronic Deadbolt for complete
  Front Entry Set
• Latch retracted by thumbpiece from outside or by inside knob/lever

• *CAUTION: Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

Latches & Strikes: Latches:

• 12-322 - Dual Option - Round Corner + Drive-in
  (16-080 + 12-321)
• 12-326 - Triple Option - Round Corner + Square Corner + Drive-in (16-210 + 12-287) Standard
• 12-353 - F60/62 UL Listed, 1" Square Corner
• 12-354 - F60/62 UL Listed, 1" Round Corner

Strikes:

• 10-115 - Round Corner Full Lip Strike Set (10-027 + 10-116)
• 10-269 - Round Corner Strike Set (10-026 + 10-027 + 10-116) Standard

Specifications: Certification:

• ANSI/BHMA A156.36-2016 Commercial Grade 1
• ANSI/BHMA A156.40-2015 Residential Grade AAA

Latch:

• 1" x 2 1/4", 1/4" radius corner faceplate, 7/8" housing diameter, 1/2" throw springlatch

Deadbolt:

• 1" x 2 1/4", 1/4" radius corner faceplate, 1" housing diameter, 1" throw, latchset number 12-321

Strike:

• Part 10-269, includes: 1 1/4" radius corner deadbolt strike (10-116), radius round corner full lip strike (10-027)

Reinforcement:

• Door frame reinforcer with 3" screws

Backset:

• Universal backset latch and deadbolt, fits either 2 3/8" or 2 3/4" backsets

Cylinder:

• 5-Pin, keyed 5-Pin, C keyway, keyed different (KD)

Door Range*:

• 1 5/8" - 1 3/4"

Keys:

• Two cut keys per lock, 5-pin, C section

Adjustable Throughbolt:

• Adjustable throughbolt can move up and down 1 1/2" to fit a variety of pre-existing holes

• Locks are furnished with standard features unless otherwise specified To order locks with non-standard features specify non-standard feature desired
• *Thick door kit available for door thicknesses up to 2 1/4" See Parts sections for item number and pricing

Finishes: 505:

• Lifetime Bright Brass

605:

• Bright Brass (US3)

608:

• Satin Brass

609:

• Antique Brass (US5)

613:

• Oil-Rubbed Bronze (US10B)

618:

• Polished Nickel

619:

• Satin Nickel (US15)

620:

• Antique Pewter (US15A)

621:

• Distressed Nickel

622:

• Matte Black (US19)

625:

• Bright Chrome (US26)

626:

• Satin Chrome (US26D)

716:

• Aged Bronze

• Non-standard finishes are not available.
• Full-color swatch examples available on inside Handleset tab.

MUST ALSO PURCHASE F58 Outside Trim of choice for a complete Handleset
