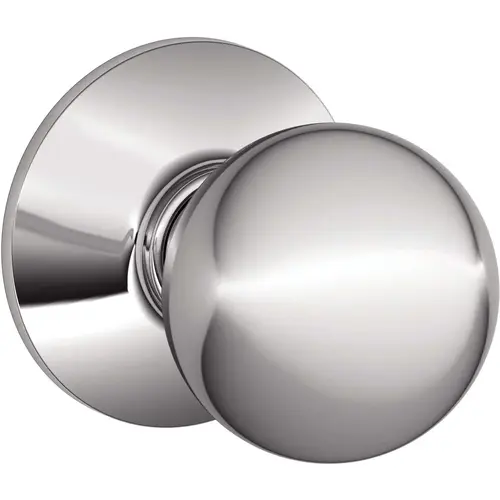

Schlage Residential F10 ORB 625 F10ORB625 16-080 10-027 Orbit Passage - Polished Chrome
Item #: F10 ORB 625 by Schlage Residential
UPC #: 043156730599
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Non-Locking - Ideal for Closets and Rooms Where Locking is Not Needed
- Quality Materials and Construction for Exceptional Security
- Applications: Residential single- and multi-family doors
- Easy 3-Step Installation, Only a Screwdriver Needed
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Lifetime Mechanical & Finish Warranty
- Quality Finishes Coordinate with Plumbing and Lighting
- U.L. Listed: Locks for up to three-hour fire doors available
- Certified Commercial Grade 2
- Hall/ Closet (Passage) Function - - Both Knobs/Levers Always Unlocked
- Graded Best in Residential Security, Durability, and Finish
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
Function
Passage/Hall/Closet
Finish
Polished Chrome
Series
F Series
Backset
2-3/8 Inch or 2-3/4 Inch
Strike
Full Lip 2-1/4 Inch, Radius Corner
Design
Orbit Knob
Color Code
625/US26
Grade
ANSI/BHMA Grade 2
Finish Description
Bright Polished Chrome
Knob style
ORB-Orbit
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Handing
Reversible
Projection
2.8750
Door Thickness
1-3/8" to 1-3/4"
Knob Diameter
2.1250
Bore Size
2.1250
Included Components
Passage levers, roses, latch, strike, mounting hardware
Door Cross Bore
2.125 Inch
Product Material
Zinc
Box Length
8.1400
Box Width
4.3700
Box Height
3.0600
For Door Thickness
1-3/8" to 1-3/4"
Strike Size
1-5/8 x 2-1/4 Inch
Strike Number
10-027
Manufacturer Parent
Allegion
Faceplate Dimension
1" x 2-1/4"
Door Edge Bore
1 Inch
Knob Style Family
Ball Knob
Latch Type
Spring
Function Description
Latch retracted by knobs/levers at all times
ANSI Function
F75
Sub-Series
F10-ORB
Door Preparation
Cross Bore 2-1/8"; Edge Bore 7/8"
ADA Compliant
No
Product Height
2-3/4 Inch
Application
Residential Single and Multi-Family Doors
Box Dimensions (L x W x H)
3.06x4.37x8.14"
Function Family
Passage/Hall/Closet
Standards
ANSI/BHMA A156.39-2015; UL Listed
Product Projection
2-7/8 Inch
Features
Non-Locking Ideal For Closets And Rooms Where Locking Is Not Needed; Easy 3-Step Installation, Only A Screwdriver Needed; Quality Materials And Construction For Exceptional Security; Quality Finishes Coordinate With Plumbing And Lighting
Strike Type
Radius, Full Lip
Bolt Throw
1/2 Inch
Warranty
Limited Lifetime Mechanical and Finish Warranty
Strike Name
Round Corner Full Lip
Finish Family
Polished Chrome
Collection
Orbit
Package Height
3.06"
Package Length
8.14"
Package Width
4.37"
Item Weight
1.45 lbs
Pack Size
1
Dimension
2-1/8" Knob and 2-7/8" Projection with 2-3/4" Rose
Material
Zinc
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Rose/Escutcheon Design
Plymouth Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
2-1/4" x 1-5/8" x 1-1/8" Lip
Cross Bore Size
2-1/8" Bore
Finish code
625
Latch Faceplate Dimension
1" x 2-1/4"
Lever Knob Design
Orbit Knob
No of inners
1
Product Overview
The Schlage Orbit Knob Hall and Closet Lock in Bright Chrome is perfect for use on doors where locking is not needed. The Orbit knob exemplifies minimalist style with its strong, spherical shape and uncomplicated design. The smooth, mirror-like finish of Bright Chrome gives the knob a dramatic allure that never fails to make a statement. Plus, it's been designed and tested with strength and durability in mind.
