The CRL Pinnacle Series of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass. A variety of six styles gives design flexibility, including three different Wall Mount and three different Glass-to-Glass types. Pinnacle Hinges are self-centering and contain a Reversible 5 degree Pivot Pin. In addition, Custom Pivot Pins are available to accommodate "off-angle" installations. Made of solid brass with all moving parts (pins and springs) in stainless steel.
Replacement Hardware :P102** - Wall plate replacement screws P615** - Cover plate replacement screws
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

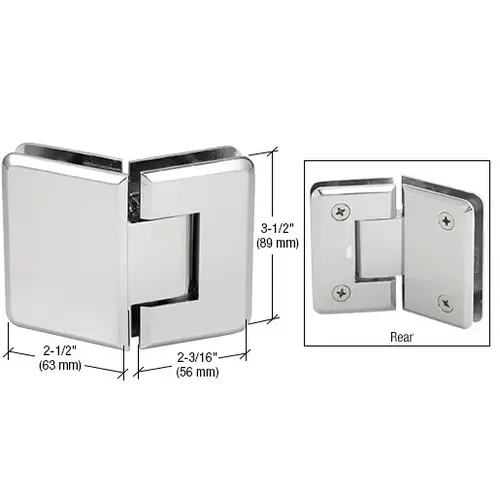

CRL P1N545CH Polished Chrome Pinnacle 135 degree Adjustable Glass-to-Glass Hinge
Item #: P1N545CH by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Self-Centering with Reversible 5 Degree Pivot Pin
- 5 Degree Pre-Set Model (Factory Set for Degree Tighter Closure Into Shower Interior)
- 5 Degree Pre-Set Model (Factory Set for 5 Degree Tighter Closure Into Shower Interior)
- Three Year Warranty
Finish
Polished Chrome
Mounting Type
Glass To Glass
Material
Brass
Back Plate
Offset
Glazing Thickness
5/16 To 1/2
Edge Profile
Beveled
Adjustable
No
Finish/Color
Polished Chrome
Series
Pinnacle
Width - Sidelite Portion
2-1/2"
Self-Centering
Yes
5 Degree Pre-Set
Yes
Maximum Door Width - 2 Hinges
28"
Maximum Door Width - 3 Hinges
32"
Maximum Door Weight - 3 Hinges
120 Lbs.
Maximum Door Weight - 2 Hinges
80 Lbs.
Width - Door Portion
2-3/16"
Glass To Glass Angle
135 degrees
Mounting Style
Wall mount
Width
2-3/16"
Maximum Door Weight - 2 Hinges
80 lbs. (36.3 kg)
Maximum Door Weight - 3 Hinges
120 lbs. (54.4 kg)
Product Overview
The CRL Pinnacle Series of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass. A variety of six styles gives design flexibility, including three different Wall Mount and three different Glass-to-Glass types. Pinnacle Hinges are self-centering and contain a Reversible 5 degree Pivot Pin. In addition, Custom Pivot Pins are available to accommodate "off-angle" installations. Made of solid brass with all moving parts (pins and springs) in stainless steel.
Replacement Hardware :
