FB32 Automatic Top Flush Bolt - Metal Doors, Satin Stainless Steel

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

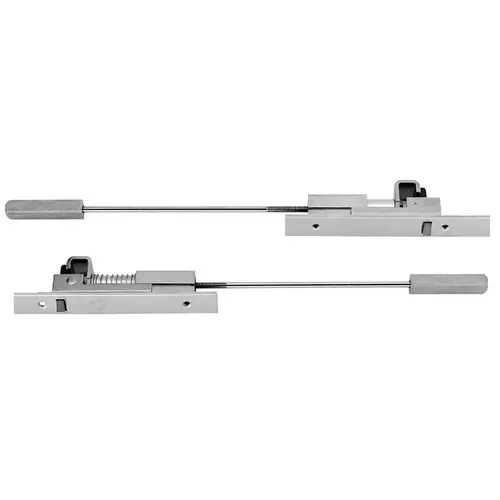

IVES FB32-12-MD US32D FB32 Automatic Top Flush Bolt - Metal Doors, Satin Stainless Steel

Item #: FB32-12-MD US32D by IVES

See reviewsSee reviews
See reviews summary
In Stock

$230.77

/each
SAVE UP TO 23.08
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 116 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Part of the Schlage Family of Products
  • All Mounting Hardware Included
  • Made with Durable Materials
  • Easy Installation
  • Limited 1 Year Warranty

Finish

Satin Stainless Steel

Handing

Non Handed

Series

Parts/Accessories

Color Code

630/US32D

Package Qty

1

Base Material

Stainless Steel

Finish Description

Satin Stainless Steel

Product Type

Door Accessory

ADA Compliant

No

Finish Family

Stainless Steel

Included Components

8-32 X 3/8" UFPHMS; 10-12 X 1-1/4" Plastic Anchor; 6-32 X 3/8" FPHMS; 6 X 3/4" FPHSMS; 8 X 1" FPHSMS; 10 X 1" FPHSMS

Strike Size

15/16" x 2-1/4" x 1/16"

Product Material

Stainless steel

Standards

Fits Standard ANSI/BHMA A115.4 Door Frame Preparations; UL10C Listed (3 Hour) Fire Doors 8ft X 8ft

Function Family

Door Accessory

Features

Fully Automatic: Inactive Door is Latched, Bolts are Extended When Active Door Closes, Door is Unlatched, Bolts Retract When Active Door is Opened; Low Actuation Forces—Top Bolt Has No Spring Tension

Body Size

1" x 6-3/4" x 2"

Rod Length

12 Inch

Application

Metal Door

Function

Flush Bolt

Guide Size

1" x 1-27/32" x 27/32" x 3/32"

Bolt Throw

3/4" with a 7/8" Vertical Adjustment

Bolt Backset

3/4 Inch

Manufacturer Parent

Allegion

Rub Plate Size

1-1/4" x 1-11/16" x 3/64"

Sub-Series

FB32-12-MD-32D

Dimension

1" Wide x 6-3/4" Long x 2" Deep

Material

Stainless Steel

Depth

2"

Manufacturer Warranty

Limited 1 year warranty

Hazardous Material

No

Finish code

US32D

No of inners

1

Product Overview
FB32 Top bolt with auxiliary fire latch (pair)
  • For use with metal doors only
  • Fully automatic—inactive door is latched, bolts are extended when active door closes, door is unlatched, bolts retract when active door is opened.
  • FB32 Model with auxiliary fire latch eliminates the bottom bolt
  • Low actuation forces—top bolt has no spring tension.
  • Non-handed
  • Bolt throw is 3/4" with a 7/8" vertical adjustment
  • Bolt backset is 3/4"
  • Standard Rod Length is 12", which is measured from the center of the flush bolt body to the bolt tip.
Certifications
  • Meets ANSI A156.3 Type 25
  • Fits standard ANSI A115.4 door frame preparations
  • UL Listed, 3 hour fire doors 8'0" x 8'0"
