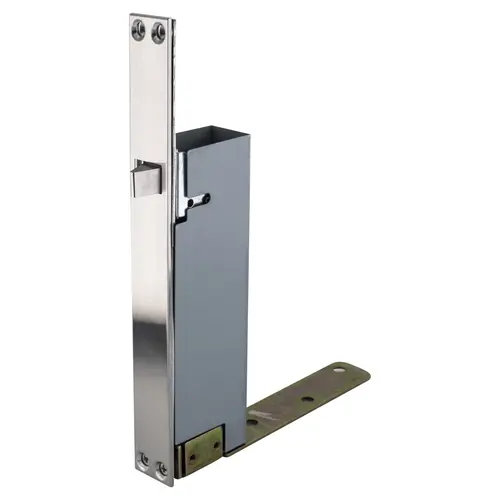

Trimco 3815X3850630 3815 X3850 Flush Bolts, Satin Stainless Steel

3800 SeriesAutomatic & Semi-Automatic Flush Bolts

Trimco's 3800 Series Automatic and Semi-Automatic Flush Bolts are engineered to be extremely quiet and ultra efficient requiring very low closing force to secure the door. The patented design contains one third fewer parts with key components constructed of stainless steel creating a flush bolt with higher reliability than the competition. Available for metal or wood doors, the 3800 Series Automatic and Semi-Automatice Flush Bolts are flexible for most any application.

Applications:

• Offices

• Hospitality

• Multi-Family & Mixed Use

• Commercial & Industrial Buildings

Features:

• Ultra efficient requiring very low closing force to secure the door

• Steel construction for high reliability and long life

• Low noise level for peace and quiet

• Architectural finishes to match any décor

• Interchangeable trim kits

Specifications: Doors:

• Metal or Wood

Standards:

• UL Rated - 3hr for Metal Doors,1-1/2hr for Wood Doors
• 3850 - 3hr for Metal Doors, 20min for Wood Doors
• BHMA 4.4 Type 25

Material Options:

• BR – Brass
• BZ – Bronze
• SS – Stainless Steel

Warranty:

• Lifetime Mechanical & Limited Finish Warranty

Notes:

• Patents #5,076,620 & #5,004,277

Functions: 3810:

• Automatic Flush Bolt for Metal Door (UL)

3820:

• Semi-Automatic Flush Bolt for Metal Door (UL)

3815L:

• Automatic Flush Bolt for Wood Door (UL)

3825L:

• Semi-Automatic Flush Bolt for Wood Door (UL)

3850:

• Edge Mounted Fire Bolt (UL)

Finishes:

• 605 - Polished Brass
• 606 - Satin Brass, Dull
• 612 - Satin Bronze
• 613 - Oil Rubbed Bronze
• 629 - Polished Stainless Steel
• 630 - Satin Stainless Steel
• SPEC - Special Options Available
