The sleek Palermo Series Hinge is unlike any other hinge. The precision lines help shape the unique design of this hinge for 3/8" to 1/2" (10 mm to 12 mm) glass. All fasteners are concealed. The hinge has an adjustable closing position that is accessed when the door is hung. The hinges are self-centering within 30 of the closed position. Using two hinges, a maximum door width of 39" (1 m) and a maximum weight of 110 lb (50 kg.) can be achieved.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

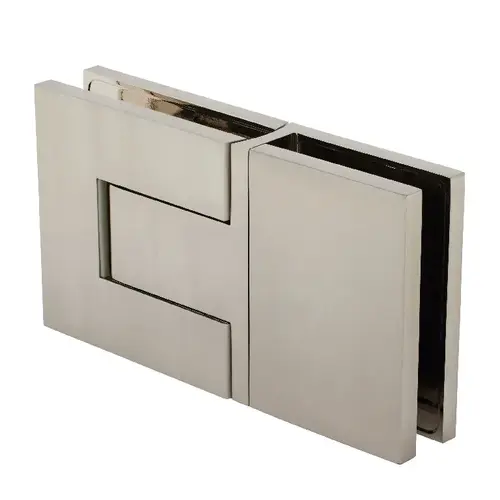

CRL PAL180BN Brushed Nickel Palermo Glass-to-Glass 180 Degree Hinge
Item #: PAL180BN by CR Laurence
Item Discontinued!See reviewsSee reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Sleek New Design
- Works with 3/8" and 1/2" (10 mm and 12 mm) glass
- Adjustable closing position with the door in place
- Handles up to a 39" (1 m) wide door using two hinges
Finish
Brushed Nickel
Mounting Type
Glass To Glass
Material
Brass
Width
5-11/16
Glazing Thickness
3/8, 1/2
Edge Profile
Square
Finish/Color
Brushed Nickel
Maximum Door Width - 2 Hinges
39"
Maximum Door Weight - 2 Hinges
110 Lbs.
Glass To Glass Angle
180 degrees
Height
3-1/8
Maximum Door Weight
110
Maximum Door Width
39
Product Overview
The sleek Palermo Series Hinge is unlike any other hinge. The precision lines help shape the unique design of this hinge for 3/8" to 1/2" (10 mm to 12 mm) glass. All fasteners are concealed. The hinge has an adjustable closing position that is accessed when the door is hung. The hinges are self-centering within 30 of the closed position. Using two hinges, a maximum door width of 39" (1 m) and a maximum weight of 110 lb (50 kg.) can be achieved.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
