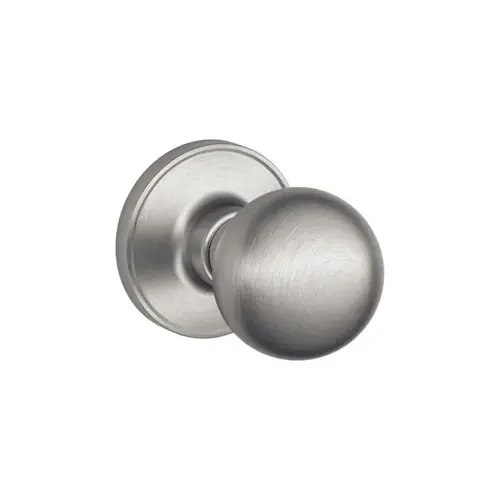

Schlage Residential J10 CNA 630 J10 Corona Passage Knob Lock, Satin Stainless Steel
Item #: J10 CNA 630 by Schlage Residential
UPC #: 043156742899
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Hall/ Closet (Passage) Function - Both Knobs/Levers Always Unlocked
- Applications: Residential single and multi family doors
- Backset: Universal - fits either 2-3/8" or 2-3/4" backset
- ANSI/BHMA A156.36 Grade 3
- Reversible Handing
- Certifications: Commercial Standard Certification:ANSI/BHMA A156.2-2010 Grade 3 Residential Standard Certification:ANSI/BHMA A156.39-2015 Grade CCC in Security, Durability and Finish
- Door thickness range: 1-3/8" to 1-3/4" standard
- Includes All Mounting Hardware for Easy Installation
- Lifetime Mechanical & 5 Year Finish Warranty
- UL Listed: Box pack available
Finish
Satin Stainless Steel
Function
10-Hall/Closet
Series
J Series
Design
Corona
Handing
Reversible
Strike
Full Lip 2-1/4 Inch, Radius Corner
Backset
2-3/8 Inch or 2-3/4 Inch
Color Code
630/US32D
Grade
ANSI/BHMA Grade 3
Finish Description
Satin Stainless Steel
Knob style
CNA-Corona
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Projection
2.8800
Door Thickness
1-3/8" to 1-3/4"
Knob Diameter
2.0000
Bore Size
2.1250
Product Height
2-5/8 Inch
Included Components
Passage Knobs; Roses; Latch; Strike; Mounting Hardware
Door Cross Bore
2.125 Inch
Product Material
Zinc
Box Length
6.7700
Box Width
3.2300
Box Height
2.7600
Application
Residential Single and Multi Family Doors
Warranty
Lifetime Mechanical; 5 yr Finish
ANSI Function
F75
Latch Type
Spring
Strike Type
Radius
ADA Compliant
No
Finish Family
Stainless Steel
Standards
ANSI/BHMA A156.2-2011
Function Description
Latch retracted by knobs/levers at all times
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Passage/Hall/Closet
Product Projection
2.88 Inch
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
2.76x3.23x6.77
Knob Style Family
Ball Knob
Sub-Series
RL_Knob_Locksets_Schlage_Residential_162
Features
Both Knobs/Levers Always Unlocked
Dimension
2" Knob Diameter and 2-3/4" Projection with 2-5/8" Diameter Rose
Material
Stainless Steel
Manufacturer Warranty
Limited Lifetime Mechanical and 5 Year Finish Warranty
Rose/Escutcheon Design
Round Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
2-1/4" x 1-5/8" x 1-1/8" Lip
Cross Bore Size
2-1/8" Bore
Finish code
630
Latch Faceplate Dimension
Round Corner 1" x 2-1/4" Faceplate or 1" Collar
Lever Knob Design
Corona Knob
No of inners
1
Product Overview
J SeriesKnobs
Schlage believes that the "finishing touch" is just as important as the first. Which is why we make distinctive door hardware designed to match your personal style. From classic looks that never go out of style to bold contemporary designs, our door knobs fit and accentuate virtually any décor. Choose from interior door knob functions perfect for bedroom, bathroom, and closet doors or exterior keypad and locking knobs.
Available Functions: J10/F75 - Hall & Closet*:- Both knobs always unlocked
- Turn-button locking. Can be opened from outside by turning outside turn mechanism
- From interior, turning inside turn-button releases inside knob
- Inactive trim for one side of door
- Used for door pull or as matching inactive trim
- Unlocked by key from outside when outer knob is locked by turn-button in inside knob
- Inside knob is locked and unlocked by turn-button
- *Non-keyed Locks
- **Keyed Locks
- 16-255 - Triple Option (Round, Square, Drive-in) - Standard
- 16-061 - UL Listed, Square Corne
- 16-254 - Dual Option (Round, Drive-in) - Standard
- 16-070 - Triple Option Spring Latch for handlesets
- 10-101 - Round Corner Full Lip - Standard
- ANSI/BHMA A156 .2-2011 Commercial Grade 3
- Dual Option: 1" x 2 1/4", 1/4" round faceplate and drive-in
- Triple Option: 1" x 2 1/4", square corner and round corner faceplate, drive-in latch (J54)
- 1 5/8" x 2 1/4", radius corner, full lip, no box
- Adjustable for 2 3/8" or 2 3/4"
- 5-pin, C keyway, keyed alike (KA4)
- 1 3/8" - 1 3/4"
- Two brass cut keys per lock, 5-pin, C section
- Bright Brass (US3)
- Antique Brass (US5)
- Satin Nickel (US15)
- Antique Pewter (US15A)
- Matte Black (US19)
- Bright Chrome (US26)
- Satin Chrome (US26D)
- Satin Stainless Steel (US32D)
- Aged Bronze
- *Non-standard finishes are not available
- Full-color swatch examples available on inside Levers tab
