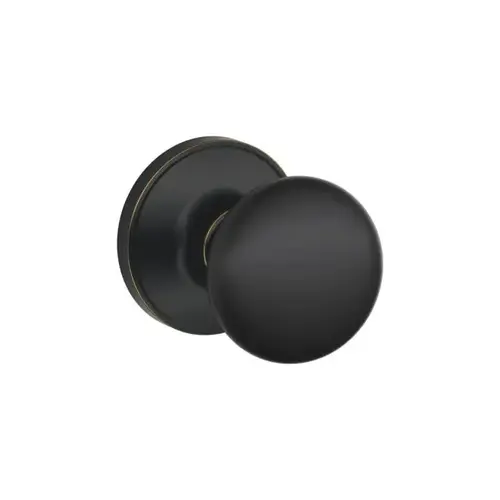

Schlage Residential J10 STR 716 Stratus Series J10 STR 716 Passage Knob, Knob Handle, Metal, Aged Bronze, 2-3/8, 2-3/4 in Backset
Item #: J10 STR 716 by Schlage Residential
UPC #: 043156895311
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Hall/ Closet (Passage) Function - Both Knobs/Levers Always Unlocked
- Easy installation
- Hall and closet function, both knobs always unlocked
- Applications: Residential single and multi family doors
- Backset: Universal - fits either 2-3/8" or 2-3/4" backset
- ANSI/BHMA A156.36 Grade 3
- Reversible Handing
- Certifications: Commercial Standard Certification:ANSI/BHMA A156.2-2010 Grade 3 Residential Standard Certification:ANSI/BHMA A156.39-2015 Grade CCC in Security, Durability and Finish
- Door thickness range: 1-3/8" to 1-3/4" standard
- Includes All Mounting Hardware for Easy Installation
- Lifetime Mechanical & 5 Year Finish Warranty
- UL Listed: Box pack available
Finish
Aged Bronze
Function
10-Hall/Closet
Series
J Series
Design
Round
Handing
Reversible
Strike
Full Lip 2-1/4 Inch, Radius Corner
Backset
2-3/8 Inch or 2-3/4 Inch
Color
Antique Bronze
Color Code
643E/US11/716
Grade
ANSI/BHMA Grade 3
Finish Description
Aged Bronze
Knob style
STR-Stratus
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Projection
2.5000
Door Thickness
1-3/8 to 1-3/4"
Knob Diameter
2.1875
Bore Size
2.1250
Product Height
2-3/4 Inch
Included Components
Passage Knobs; Roses; Latch; Strike; Mounting Hardware
Door Cross Bore
2.125 Inch
Product Material
Zinc
Box Length
6.7700
Box Width
3.2300
Box Height
2.7600
Application
Residential Single and Multi Family Doors
Warranty
Lifetime Mechanical and 5 Years Finish
ANSI Function
F75
Latch Type
Spring Latch
Strike Type
Round Corner Full Lip
ADA Compliant
No
Finish Family
Antique Bronze
Standards
ANSI/BHMA A156.2-2011
Function Description
Latch retracted by knobs/levers at all times
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Passage/Hall/Closet
Product Projection
2-1/2 Inch
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
2.76x3.23x6.77
Knob Style Family
Round Flat Knob
Sub-Series
RL_Knob_Locksets_Schlage_Residential_164
Features
Both Knobs/Levers Always Unlocked
Strike Size
1-5/8 x 2-3/4"
Backset Size
2-3/8 2-3/4"
Security Grade
3
Cross Bore Diameter
2-1/8"
Latch Housing Diameter
7/8"
Throw Length
1/2"
Nomenclature
J10STR716 KNOB DR PASS AGEDBRZ
Backset Type
Adjustable
Bolt Throw Size
1/2"
Edge Bore Diameter
1"
Projection Size
1/2"
Material
Metal
Dimensions
2.38 in L x 2.63 in W x 2.63 in H
Handle Type
Knob
Faceplate Size
1 x 2-1/4"
Dimension
2-3/16" Knob Diameter and 2-5/16" Projection with 2-5/8" Diameter Rose
Manufacturer Warranty
Limited Lifetime Mechanical and 5 Year Finish Warranty
Rose/Escutcheon Design
Round Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
2-1/4" x 1-5/8" x 1-1/8" Lip
Cross Bore Size
2-1/8" Bore
Finish code
716
Latch Faceplate Dimension
Round Corner 1" x 2-1/4" Faceplate or 1" Collar
Lever Knob Design
Stratus Knob
No of inners
1
Product Overview
KNOB DOOR PASS AG BRZ STRATUS
Specifications:
Specifications:
Application: For residential single and multi-family doors
Includes: Mounting Hardware
Stratus knob hall and closet lock in aged bronze.
