Features
- Fasteners: TORX Machine and TORX Wood Screws
Finish
Clear Anodized Aluminum
Length
96"
Size
96"
Handing
Left Hand
Product Overview

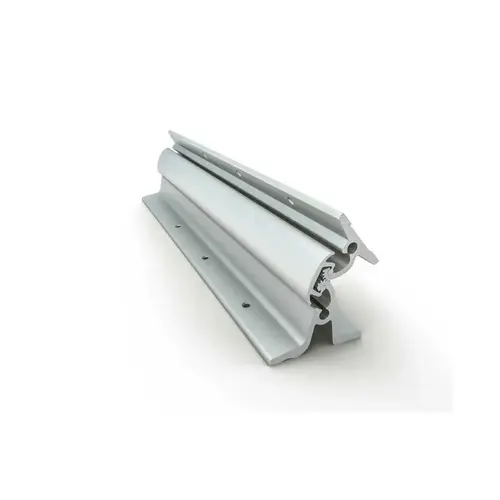

PEMKO DSHP01 The DSHP01 Double Swing Continuous Geared Hinge allows door to swing up to 100-degrees in both directions. When paired with our Emergency Release Stop (ERS) this product is ideal for healthcare applications where someone is incapacitated, and access is needed from the corridor side of the opening. Features
- Door swings 100 degrees in either direction
- Use with Pemko Emergency Release Stop (ERS) for a complete anti-barricade system
- In an emergency, stop is discharged to allow door to swing in the opposite direction
- Use in cased openings where panic hardware is needed
- 1/8" hinge frame and door leaf offset eliminates ligature points
- Security Torx fasteners included
- Custom lengths available
- Order form mandatory
- Grade:Grade 1
- Hinge Material:Aluminum
- Hinge Mounting Type:Double Swing Edge Mount
- Hinge Strength:Heavy Weight
- Handing:Handed
- Fastener:TORX Security Wood x Metal
- Fastener Type:Self Tapping
- Maximum Door Thickness:1 3/4"
- Minimum Door Thickness:1 3/4"
- Maximum Door Width:4 ft
- Maximum Length:10 ft
- Minimum Length:79"
- Maximum Swing:100 degree
- Minimum Hinge Clearance:3"
- Weight:2.36lbs. per foot
