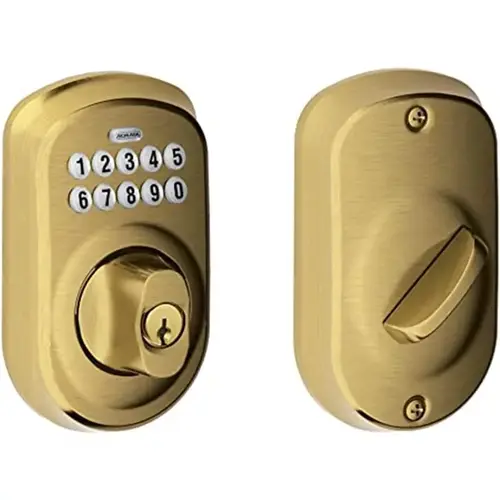

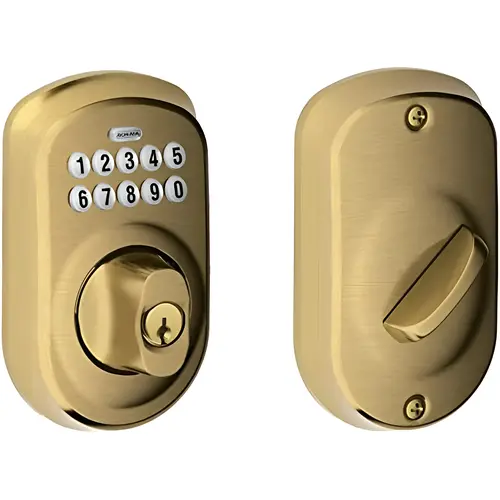

Schlage Residential BE365 PLY 609 Plymouth Electronic Keypad Deadbolt C Keyway with 12287 Latch and 10116 Strike Antique Brass Finish
Item #: BE365 PLY 609 by Schlage Residential
Brand: Schlage Residential
UPC #: 043156894574
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Box Pack
- Electronic Keypad Deadbolt - Unlocked by Keypad or Key from Outside or by Inside Thumbturn
- Includes All Mounting Hardware for Easy Installation
- Lifetime Mechanical & Finish Warranty
- 3 Year Limited Electronic Warranty
- Fingerprint Resistant
Finish
US5 Antique Brass (609)
Function
365-Keypad Deadbolt
Series
BE Series
Design
Plymouth
Strike
Round Corner with Reinforcer
Backset
Dual Option-Round, Drive-In
Color
Satin Brass Blackened Satin Relieved Clear Coated
Package Qty
1
Color Code
609/US5
Lock Platform
Deadbolt Lock
Base Material
Brass
Finish Description
Antique Brass
Grade
ANSI/BHMA Grade 2
Keyblank Grouping
SCHR-C-5-1
Cylinder Type
Conventional Cylinder
Product Type
Keypad Lock
Rose/Escutcheon Trim
PLY-Plymouth
Keyway
Schlage C
Projection
2.1900
Door Thickness
1-3/8" to 1-3/4"
Bore Size
2.1250
Product Height
4.22 Inches
Product Length
3.1700
Included Components
(1) Key
Door Cross Bore
2.125 Inch
Keying Charges
Residential-Conventional
Product Material
Metal
Box Length
8.3900
Box Width
6.7700
Box Height
4.2200
Trim Style
Plymouth
Code Capacity
19 codes
Sub-Series
RH_Keypad_Touchscreen_Locks_schlage_residential_15
Box Dimensions (L x W x H)
4.22x6.77x8.39"
Door Edge Bore
1 Inch
Manufacturer Parent
Allegion
Features
Deadbolt Thrown From Outside by Keyway Turn After Pressing Schlage Button or by Inside Thumbturn; Deadbolt Retracted From Outside by Entering Valid User Code then Rotating Keyway Turn or by Inside Thumbturn
Battery Type
(1) 9V
Function Family
Keypad Lock
Faceplate Dimension
1" x 2-1/4"
Standards
ANSI/BHMA A156.36-2010; ANSI/BHMA A156.40-2015
Product Depth
8.39 Inches
Finish Family
Antique Brass
ADA Compliant
No
Product Width
6.77 Inches
Number of Codes
2 Pre-Set Unique 4-Digit Access Codes, Storage of Up to 19 Access Codes
Warranty
3 yr Electronics; Limited Lifetime Mechanical/Finish
For Use With
Existing, Standard Pre-Drilled Doors
Item Weight
5.25 lbs
Package Width
6"
Package Length
9"
Package Height
5"
Collection
Plymouth
Dimension
3-1/8" x 5-1/2" x 5-3/4"
Material
Zinc
Manufacturer Warranty
Limited Lifetime Mechanical & Finish Warranty & 1 Year Electronics
Keypad Type
Keypad
Rose/Escutcheon Design
Plymouth Escutcheon
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
1-1/8" x 2-3/4"
Cross Bore Size
2-1/8" Bore
Finish code
609
Latch Faceplate Dimension
1" x 2-1/4"
No of inners
1
No Of Pins
5 Pin Cylinder
Power
Battery Operated
ANSI/BHMA Standards
ANSI Grade 2, ANSI Grade AAA
Keyed
Yes
Keying
KA4 - Keyed Alike (For Multiple Locks)
Battery Operated
Yes
Reader Type
Keypad
Door Handing
Non-Handed
Door Thickness Range
1-3/8" To 1-3/4"
Cylinder and Keyways
5-Pin Tumbler
Door Strike
Round Corner Strike
Segment
Door Hardware
Product Overview
BE SeriesKeypad Deadbolts
In addition to security, quality and reliability you can count on the Schlage keypad deadbolts to provide convenience for today’s active lifestyles. Keypad entry locks mean no keys to hide, lose, carry or forget. Simplify your life with the latest in home security. Step up to a more secure and flexible solution with Schlage electronic keypad locks. You're free to add, change, or delete user codes in just seconds and to come and go as you please. Install a Schlage lock and you install nearly a century of total dedication to security, quality and innovation.
Features:- ANSI/BHMA Grade 2 Certified
- Patented commercial grade clutching motor drive, tested to 1,000,000 cycles
- Vandal resistant clutching lever and free spinning deadbolt turn
- Turn lock function - deadbolt allows user to lock and leave without a key
- Code control; 6 digit programming code to add/delete user codes
- 19 user 4 digit code capacity; 10,000 user code combinations
- Blue LED illuminated keypad on demand
- Mechanical key override
- 9 volt alkaline battery gives an average of 3 year life
- Fits a standard door preparation
- Keypad deadbolt - BE365
- Camelot - CAM
- Plymouth - PLY
- Chrome plate - CP
- Satin chrome plate - SCP
- Satin nickel plate - SNP
- Timber or metal
- 35mm to 44mm
- Cold rolled steel - corrosion treated
- Steel - plated finish
- Die cast with hardened steel insert
- Steel - plated finish
- 60/70mm adjustable
- Schlage C5 pin
- Chrome plate, satin chrome plate, satin nickel plate
- Lifetime mechanical & finish 1 year electronic
