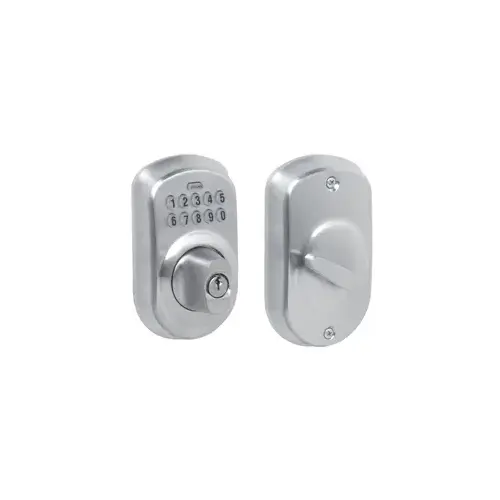

Schlage Residential BE365 PLY 626 BE365PLY626 12-321 10-116 KD Plymouth Keypad Deadbolt - Satin Chrome
Item #: BE365 PLY 626 by Schlage Residential
UPC #: 043156071333
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Box Pack
- Electronic Keypad Deadbolt - Unlocked by Keypad or Key from Outside or by Inside Thumbturn
- Includes All Mounting Hardware for Easy Installation
- Lifetime Mechanical & Finish Warranty
- 3 Year Limited Electronic Warranty
- Fingerprint Resistant
Finish
Satin Chrome
Function
Electronic - Non-Connected
Series
BE Series
Design
Plymouth
Strike
Round Corner with Reinforcer
Backset
Dual Option-Round, Drive-In
Package Qty
1
Color Code
626/US26D
Lock Platform
Deadbolt Lock
Base Material
Brass or Bronze
Finish Description
Satin Chrome
Grade
ANSI/BHMA Grade 2
Keyblank Grouping
SCHR-C-5-1
Cylinder Type
Conventional Cylinder
Product Type
Keypad Lock
Rose/Escutcheon Trim
PLY-Plymouth
Keyway
SC1 5-Pin Pin & Tumbler
Projection
2.1900
Door Thickness
1-3/8" to 1-3/4"
Bore Size
2.1250
Product Height
4.22 Inches
Product Length
3.1700
Included Components
(1) Key
Door Cross Bore
2.125 Inch
Keying Charges
Residential-Conventional
Product Material
Metal
Box Length
8.3900
Box Width
6.7700
Box Height
4.2200
Code Capacity
19 codes
Trim Style
Plymouth
For Use With
Existing, Standard Pre-Drilled Doors
Warranty
3 yr Electronics; Limited Lifetime Mechanical/Finish
Number of Codes
2 Pre-Set Unique 4-Digit Access Codes, Storage of Up to 19 Access Codes
Product Width
6.77 Inches
ADA Compliant
No
Finish Family
Satin Chrome
Product Depth
8.39 Inches
Standards
ANSI/BHMA A156.36-2010; ANSI/BHMA A156.40-2015
Faceplate Dimension
1" x 2-1/4"
Function Family
Keypad Lock
Battery Type
(1) 9V
Features
Deadbolt Thrown From Outside by Keyway Turn After Pressing Schlage Button or by Inside Thumbturn; Deadbolt Retracted From Outside by Entering Valid User Code then Rotating Keyway Turn or by Inside Thumbturn
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
4.22x6.77x8.39"
Sub-Series
RH_Keypad_Touchscreen_Locks_schlage_residential_15
Collection
Plymouth
Package Height
4.22"
Package Length
8.39"
Package Width
6.77"
Item Weight
5.25 lbs
Pack Size
1
Dimension
3-1/8" x 5-1/2" x 5-3/4"
Material
Zinc
Manufacturer Warranty
Limited Lifetime Mechanical & Finish Warranty & 1 Year Electronics
Keypad Type
Keypad
Rose/Escutcheon Design
Plymouth Escutcheon
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
1-1/8" x 2-3/4"
Cross Bore Size
2-1/8" Bore
Finish code
626
Latch Faceplate Dimension
1" x 2-1/4"
No of inners
1
No Of Pins
5 Pin Cylinder
Product Overview
The Schlage Keypad Deadbolt with Plymouth Trim in Satin Chrome is perfect for use on front doors, garage entry doors, and side and back doors. With a keypad deadbolt, you can control entry to your home more easily and securely. No more hiding keys under the doormat or losing track of copies – just use access codes that can be created or deleted in seconds. The Plymouth Trim features an oval shape and straightforward design that becomes especially edgy when finished in Satin Chrome. Plus, it's been designed and tested with strength and durability in mind.
