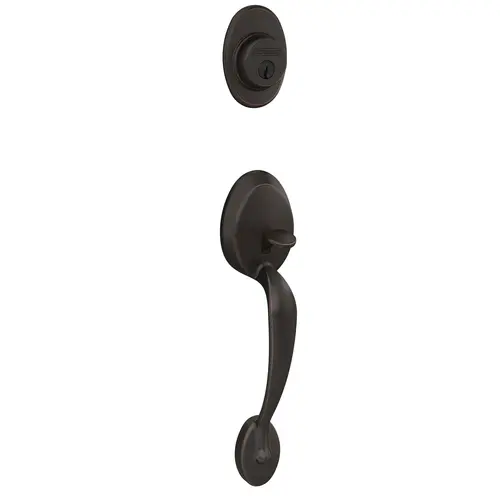

Schlage Residential F58 PLY 716 F58PLY716 Plymouth Handleset for F59 Trims - Aged Bronze
Item #: F58 PLY 716 by Schlage Residential
UPC #: 043156164288
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Exterior Active Handleset - Outside Grip & Deadbolt Trim of F60; Order with F59 for Complete Handleset
- One-Tool Installation - Installs with Just a Phillips Screwdriver
- Reversible Handing
- Applications: Residential single and multi-family entrance doors.
- Patented Throughbolt Slides Up and Down So You Don't Have to Patch/Redrill Your Door
- Lifetime Mechanical & Finish Warranty
- Keying: F-Series handlesets are 5-pin tumbler with two keys per lock.
- Certified Commercial Grade 1
- Graded Best in Residential Security, Durability, and Finish
- Backset: Universal latches and deadbolts fit 2-3/8" (60mm) or 2-3/4" (70mm) backsets.
Finish
Aged Bronze
Design
Plymouth
Series
F Series
Function
Single Cylinder
Color
Antique Bronze
Color Code
643E/US11/716
Mount
Sectional
Handle Style
PLY-Plymouth
Cylinder Type
5-Pin
Finish Description
Aged Bronze
Keyblank Grouping
SCHR-C-5-1
Rose/Escutcheon Trim
Oval Escutcheon
Product Type
Handleset
Grade
ANSI/BHMA Grade 1
Keyway
SC1 5-Pin Pin & Tumbler
Handing
Reversible
Projection
2.2800
Door Thickness
1-5/8 to 1-3/4"
Bore Size
2.1250
Door Cross Bore
2.125 Inch
Keying Charges
Residential-Conventional
Product Material
Zinc
Included Components
Outside Grip Handle; Deadbolt Trim of F60; (2) Cut Keys
Box Length
16.2500
Box Width
7.9700
Box Height
3.9000
Returnable
Yes
Defective Code
A
Commercial or Residential
Residential
Lockset Type
Single
Number in Package
1 pk
ADA Compliant
No
Indoor or Outdoor
Outdoor
Maximum Door Thickness
1-3/4"
Style
Plymouth
Packaging Type
Boxed
Minimum Door Thickness
1-3/8"
Knob style
Handleset
Door Direction
Right or Left Handed
Material
Solid Brass
Knob or Lever Cross Bore Diameter
2-1/8"
Each Weight
3.100 LB
Velocity
X
Hazardous Material
No
Strike Type
Full Lip Square Corner
Strike Size
1-1/8 x 2-3/4 in Deadbolt 1-5/8 x 2-1/4 in Latchbolt
Backset Size
2-3/8 x 2-3/4"
Key Type
Keyed different
Keyway type
C
Latch Housing Diameter
1"
Nomenclature
F58PLY716 PLY HANDLESET A BRNZ
Backset Type
Universal
Edge Bore Diameter
7/8"
Deadbolt Latch Throw
1"
Plainbolt Latch Throw
1/2"
Dimensions
7/8"
Application
Residential
Center to Center
4"
Warranty
Lifetime Limited Mechanical/Finish
Standards
ANSI/BHMA A156.36-2016; ANSI/BHMA A156.40-2015
Function Family
Handleset Exterior
Features
Door Frame Reinforcer With 3" Screws; Adjustable Throughbolt can Move Up and Down 1-1/2" to Fit a Variety of Pre-Existing Holes; Pair With An F59 for a Complete Handleset
Manufacturer Parent
Allegion
Inside Trim Function
F59 Inside Trim
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
3.9x7.97x16.25"
Sub-Series
RL_Handlesets_schlage_residential_6
Finish Family
Antique Bronze
Backset
2-3/4", 2-3/8"
Cylinder Included
Yes
Alternate Part Number-1
143940
Restricted Keyway
No
Latch Bolt Type
Deadbolt
Knob/Lever Design
Plymouth
Latch Bolt Faceplate Size
1"x 2-1/4"
Door Bore Size
2-1/8"
Lock Category
Handlesets
Door Thickness Min
1-5/8"
Latch Bolt Face Type
Triple Option-Round, Square, Drive-in
Latch Bolt Throw
1/2"
Door Thickness Max
1-3/4"
Knob/Lever Style
Handleset
Collection
Plymouth
Package Height
3.9"
Package Length
16.25"
Package Width
7.97"
Item Weight
3.63 lbs
Pack Size
1
Height
3.74
Length
16.14
Width
7.87
Dimension
18-1/16" Height x 2-15/16" Width x 2-5/16" Projection
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Door Range
1-5/8" to 1-3/4"
Cross Bore Size
2-1/8" Bore
Finish code
716
No of inners
1
No Of Pins
5 Pin Cylinder
Product Overview
The Schlage Plymouth Exterior Handleset Grip with Exterior Single Cylinder Deadbolt in Aged Bronze is perfect for use on the exterior of your front door. The Plymouth handleset's oval shape and straightforward design make it as adaptable as it is popular. Our Aged Bronze finish is inspired by traditional design, featuring warm, copper tones that break through its darker, aged exterior. Plus, it's been designed and tested with strength and durability in mind.
