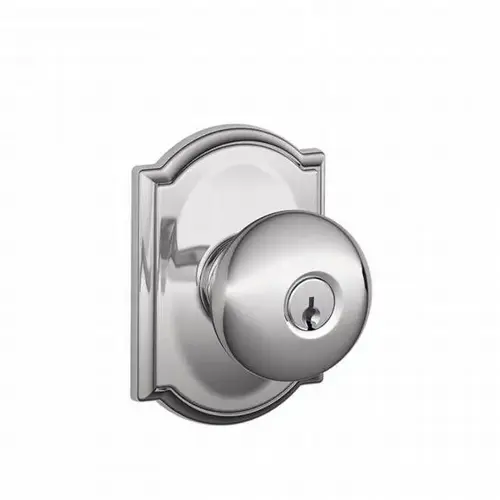

Schlage Residential F51A PLY 625 CAM Plymouth Knob with Camelot Rose Keyed Entry Lock C Keyway with 16211 Latch and 10063 Strike Bright Chrome Finish
Item #: F51A PLY 625 CAM by Schlage Residential
UPC #: 043156449170
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Applications: Residential single- and multi-family doors
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- U.L. Listed: Locks for up to three-hour fire doors available
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
- Easy 3-Step Installation, Only a Screwdriver Needed
- Metal Construction Adds Strength, Security and Durability
- Lifetime Mechanical & Finish Warranty
- Quality Finishes Coordinate with Plumbing and Lighting
- Certified Commercial Grade 2
- Graded Best in Residential Security, Durability, and Finish
- Entry (Keyed) Function - Locked by Key & Rotating Cylinder from Outside; Unlocked by Key on Outside or when opened from inside
Finish
Bright Polished Chrome
Grade
ANSI/BHMA Grade 2
Backset
2-3/8 Inch or 2-3/4 Inch
Handing
Reversible
Color
Bright Chrome
Color Code
625/US26
Keyway
Schlage C
Function
51A-Keyed Entry
Strike
Full Lip 2-1/4 Inch, Radius Corner
Cylinder Type
Conventional Cylinder
Finish Description
Bright Polished Chrome
Knob style
PLY-Plymouth
Keyblank Grouping
SCHR-C-5-1
Rose/Escutcheon Trim
CAM-Camelot
Keying Charges
Residential-Conventional
Design
Plymouth Knob With Camelot Rose
Product Type
Cylindrical Lock
Series
F Series
Warranty
Lifetime Limited Mechanical/Finish
Application
Residential; Standard Doors
Door Thickness
1-3/8" to 1-3/4"
Bolt Throw
1/2 Inch
Latch Type
Deadlatch
Product Height
2-3/4 Inch
Strike Type
Radius Corner Full Lip
ADA Compliant
No
Finish Family
Polished Chrome
Included Components
Keyed Entry Levers; Roses; Latch; Strike; Mounting Hardware
Door Cross Bore
2.125 Inch
Product Material
Zinc
Bolt Type
Deadlatching
Standards
ANSI/BHMA A156.2-2011; ANSI/BHMA A156.39-2015; UL Listed
Faceplate Dimension
1" x 2-1/4"
Door Preparation
Cross Bore: 2-1/8"; Edge Bore: 1"
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Entry/Entrance/Office
Product Projection
2-5/16 Inch
Features
Works With Right and Left Swing Doors; Knob Design Pairs Well With Contemporary Styles; Finishes Coordinate Easily With Plumbing and Lighting Fixtures; Graded Best in Residential Security and Durability and Finish
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Knob Style Family
Round Flat Knob
Sub-Series
F51A-PLY-CAM
Strike Size
1-5/8" x 2-1/4"
Dimension
2-3/16" Knob and 2-5/16" Projection with 2-3/4" x 4-1/8" Rose
Material
Zinc
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Rose/Escutcheon Design
Camelot Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
1-5/8" x 2-1/4"
Cross Bore Size
2-1/8" Bore
Finish code
625
Latch Faceplate Dimension
1" x 2-1/4"
Lever Knob Design
Plymouth Knob
No of inners
1
No Of Pins
5 Pin Cylinder
Product Overview
F SeriesKnob Locks
The Schlage F-Series Knobs offer the benefit of over 90 years of Schlage quality design and workmanship. With a range of Knobs in a variety of finishes, Schlage has a lockset to complement any architectural style. These value-engineered locksets are built to last.
Available Functions: F10/F75 – Hall & Closet*:- Both knobs/Knobs always unlocked
- Push-button locking
- Can be opened from outside with small circular tool
- Turning inside knob/Knob releases button
- Non-turning trim for one side of door
- Used for door pull or as matching inactive trim
- Keyed entry function unlocks when door is opened from the inside, allowing you to leave quickly, conveniently and re-enter easily
- Locked by inserting key and rotating cylinder from outside, or manually rotating interior turn-button after exit
- Outside knob/Knob fixed. Entrance by key only .
- Inside knob/Knob always unlocked
- *Non-keyed Locks
- **Keyed Locks
- Dual Option (Round, Drive-in) Standard
- Square Corner
- Triple Option
- (Round, Square, Drive-in)
- UL Listed Square Corner with Firecup
- UL Listed Round Corner with Firecup
- 5" Backset, Square Corner
- Dual Option (Round, Drive-in) Standard
- Square Corner
- Triple Option
- (Round, Square, Drive-in)
- UL Listed Square Cornerwith Firecup
- UL Listed Round Corner with Firecup
- 5" Backset, Square Corner
- Round Corner Full Lip Standard
- Square Corner T Strike
- Square Corner Full Lip
- Circular - Adjustable
- Dual Strikes
- (Round & Square Full Lip)
- ANSI Square Corner
- ANSI/BHMA A156 .2-2017 Commercial Grade 2
- ANSI/BHMA A156 .39-2015 Residential Grade AAA
- Available UL Listed for 3-hour fire door
- 1" x 2 1/4", 1/4" radius corner faceplate, 7/8" housingdiameter, 1/2" throw,circular drive-in included, universal latch
- 1 5/8" x 2 1/4" radius corner, full lip, no box
- Dual backset latches, fits either 2 3/8" or 2 3/4" backsets
- 5-Pin, C keyway, keyed alike (KA4)
- 1 3/8" - 1 3/4"
- Two per lock, 5-pin, C section
- Locks are furnished with standard features unless otherwise specified. Toorder locks with non-standard features specify non-standard feature desired.
- Lifetime Bright Brass
- Bright Brass (US3)
- Satin Brass
- Antique Brass (US5)
- Oil-Rubbed Bronze (US10B)
- Polished Nickel
- Satin Nickel (US15)
- Antique Pewter (US15A)
- Distressed Nickel
- Matte Black (US19)
- Bright Chrome (US26)
- Satin Chrome (US26D)
- Aged Bronze
- Non-standard finishes are not available.
- (ACC)
- (AVA)
- (VLA)
- (BIR)
- (BRW)
- (CHP)
- (ELA)
- (FLA)
- (JAZ)
- (LAT)
- (MNH)
- (MER)
- (NBK)
- (SAC)
