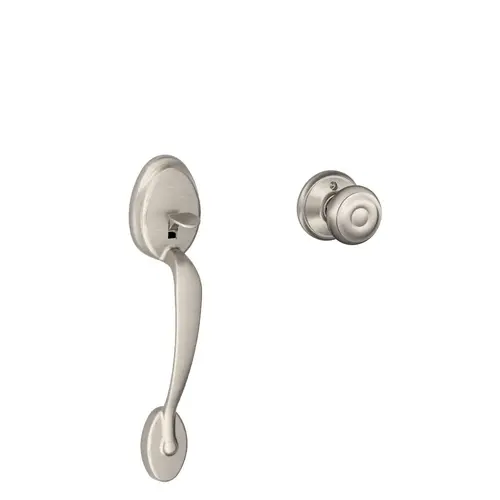

Schlage Residential FE285 PLY619GEO Plymouth with Georgian Knob Bottom Half Handleset with 16080 Latch and 10063 Strike Satin Nickel Finish
Item #: FE285 PLY619GEO by Schlage Residential
Brand: Schlage Residential
UPC #: 43156219575
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Exterior Active Handleset - Outside Grip & Deadbolt Trim of F60; Order with F59 for Complete Handleset
- Lower Half - Front Entry Handleset - Combine with BE365 Keypad Deadbolt for Complete Front Entry Set
- One-Tool Installation - Installs with Just a Phillips Screwdriver
- Applications: Residential single and multi-family entrance doors.
- Reversible Handing
- Keying: F-Series handlesets are 5-pin tumbler with two keys per lock.
- Patented Throughbolt Slides Up and Down So You Don't Have to Patch/Redrill Your Door
- Backset: Universal latches and deadbolts fit 2-3/8" (60mm) or 2-3/4" (70mm) backsets.
- Lifetime Mechanical & Finish Warranty
- Certified Commercial Grade 1
- Graded Best in Residential Security, Durability, and Finish
Finish
Satin Nickel
Backset
Dual Option, Round or Drive In, Adjustable Spring Latch, 2-3/8" or 2-3/4" Backset
Function
Passage Handleset
Strike
Round and Square Corner Full Lip Strikes
Design
Plymouth With Georgian Knob
Series
FE Series
Color
Satin Nickel Plated Clear Coated
Color Code
619/US15
Handing
Reversible
Grade
ANSI/BHMA Grade 1
Application
Can Be Used With New or Existing Deadbolt or Electronic Deadbolt
Warranty
Lifetime Limited Mechanical/Finish
Door Thickness
1-5/8" to 1-3/4"
Mount
Sectional
Handle Style
PLY-Plymouth
Finish Description
Satin Nickel
ADA Compliant
No
Finish Family
Satin Nickel
Included Components
Outside Grip Handle; Inside Trim; Latch; Strike; Mounting Hardware
Knob style
GEO-Georgian
Rose/Escutcheon Trim
Oval Escutcheon/Round Rose
Door Cross Bore
2.125 Inch
Product Material
Zinc
Standards
ANSI/BHMA A156.36-2016; ANSI/BHMA A156.40-2015
Function Family
Handleset Lower Half
Features
Replaces Virtually Any Existing Handleset; Easy Installation: One-Person Project; No Extra Hands Needed; Designs and Finishes to Match Any Homes Architectural Style
Product Type
Handleset
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
3.88x8x16.25"
Knob Style Family
Round Flat Knob
Sub-Series
FE285-PLY-GEO
Dimension
2-3/16" Knob and 2-5/16" Projection with 2-3/4" Rose
Material
Zinc
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Rose/Escutcheon Design
Georgian Rose
Door Range
1-5/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
1-5/8" x 2-1/4"
Cross Bore Size
2-1/8" Bore
Finish code
619
Latch Faceplate Dimension
1" x 2-1/4"
Lever Knob Design
Georgian Knob
No of inners
1
Keyed
No
Handle Type
Knob
Handle Design
Georgian Knob
Electronic
No
Lever/Knob Design
Georgian Knob
Door Handing
Non-Handed
Standard Strike
10-027: Full Lip Radius Strike, 2-1/4" x 1-5/8"
Substrate Type
Zinc and Steel
Door Thickness Range
1-3/8" To 1-3/4"
Trim Hardware
Century
Segment
Door Hardware
Standard Latch
16-080: Spring Latch, Dual Option (Round, Drive-in)
Projection
2-5/16"
Product Overview
Lower Half Handleset, Plymouth Style, Georgian Knob, Satin Nickel
Your front door is more than just an entrance, it's also a showpiece Ð one of the first things a guest sees. That's why it's important to choose the right handleset. Schlage offers a wide variety of designs and finishes, from angular to flowing, classic to contemporary, all designed to ensure that your front door is the perfect introduction to your home.
Patented throughbolt slides up and down.
