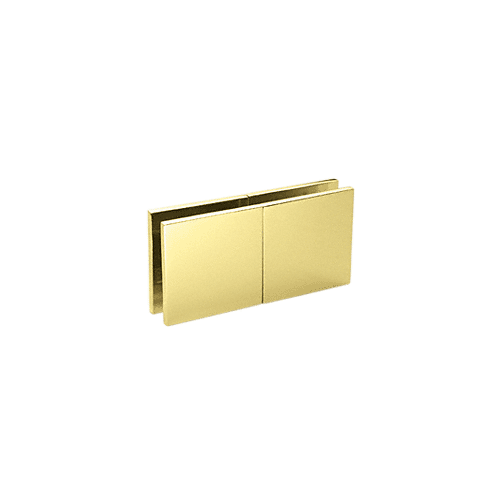

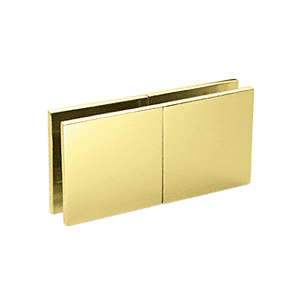

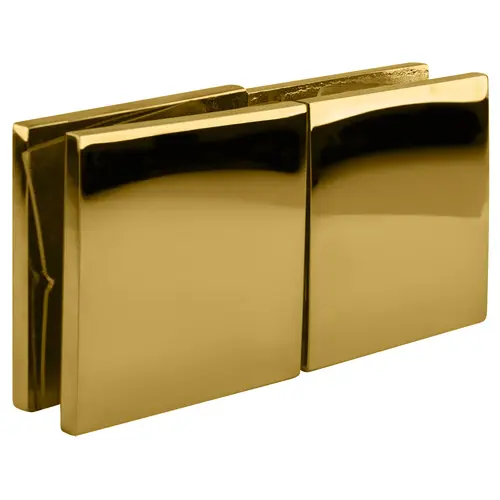

Polished Brass Square 180 Degree Glass-to-Glass Movable Transom Clamp

Roll over image to zoom in

CRL SGC188BR Polished Brass Square 180 Degree Glass-to-Glass Movable Transom Clamp

Item #: SGC188BR by CR Laurence

See reviewsSee reviews
In Stock

$28.54

/each
SAVE UP TO 2.85

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • Use Monolithic Tempered Glass
  • For 3/8" to 1/2" (10 to 12 mm) Thick Glass
  • Glass Transom Swivels to Allow Release of Steam
  • Solid Brass Material
  • Wall Mount, and 180 Degree Models Available

Overall Width

4-1/16 in (103 mm)

Size

4-1/16" (103 mm) Wide x 2" (51 mm) High

Height

2

Hole Required in Glass

3/8" to 1/2" (10 to 12 mm)

Finish

Polished Brass

Mounting Type

Pivoting Glass To Glass

Material

Brass

Width

4-1/16

Glazing Thickness

3/8 to 1/2

Finish/Color

Polished Brass

Glass To Glass Angle (Degrees)

180

Mounting Style

Pivoting Glass To Glass

Height (Inches)

2

Width (Inches)

4-1/16

Enclosure Type

Niche, Tailor Made Solutions

Design Style

Squared

Product Overview

CRL Square 180 Degree Glass-to-Glass Movable Transom Clamps allow the rotation of a movable transom off of an inline fixed glass panel. To assure balanced movement the Clamp must be centered on the transom. Maximum movable transom size is 16" x 30" (406 x 762 mm).
NOTE: Replacement Parts are Cat. No.'s 90295A120 (Nylon Washer), 211039 (10-32 x 3/4" Flat Head Phillips Screw), and 193004 (10-32 Nylon Lock Nut).
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 Require 3/4" (19 mm) Holes; SGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Mounting Screws (for Wall Clamps) and Gaskets

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Brass Finish Advisory: Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
