The BM Series of Single-Sided Towel Bars With Metal Washers are designed for glass mounting on fixed panels or doors. The 3/16" low profile end caps make this an ideal bar for sliding bypass doors as well. The bars are constructed of 1.5 mil thick heavy brass tubing. Decorative metal back-up washers are included, as well as plastic washers to protect against glass-to-metal contact.
SPECIFICATIONS:
Material: 3/4" (19 mm) Diameter Brass Tubing (1.5 mil thick); 1-1/4" (32 mm) Diameter Metal Washers
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Hole Diameter Required: 1/2" (12 mm)
Thread Size: 1/4"-20
Center-to-Center Hole Spacing:
12" Towel Bar = 12" (305 mm)
18" Towel Bar = 18" (457 mm)
20" Towel Bar = 20" (508 mm)
22" Towel Bar = 22" (559 mm)
24" Towel Bar = 24" (610 mm)
26" Towel Bar = 26" (660 mm)
27" Towel Bar = 27" (686 mm)
28" Towel Bar = 28" (711 mm)
30" Towel Bar = 30" (762 mm)
AVAILABLE SIZES:
CAT. NO. BM12 12" Towel Bar
CAT. NO. BM18 18" Towel Bar
CAT. NO. BM20 20" Towel Bar
CAT. NO. BM22 22" Towel Bar
CAT. NO. BM24 24" Towel Bar
CAT. NO. BM26 26" Towel Bar
CAT. NO. BM27 27" Towel Bar
CAT. NO. BM28 28" Towel Bar
CAT. NO. BM30 30" Towel Bar
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

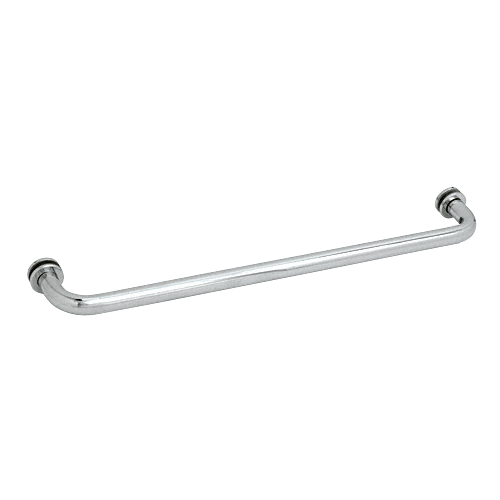

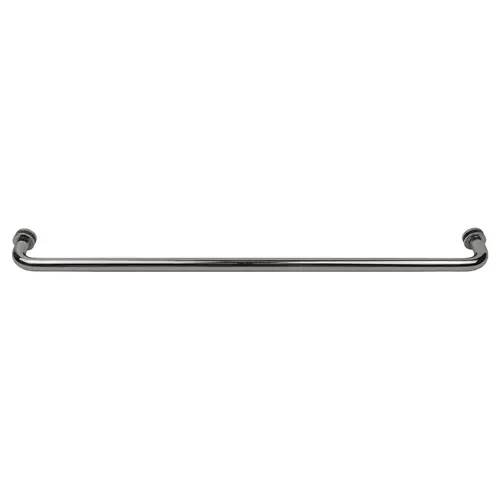

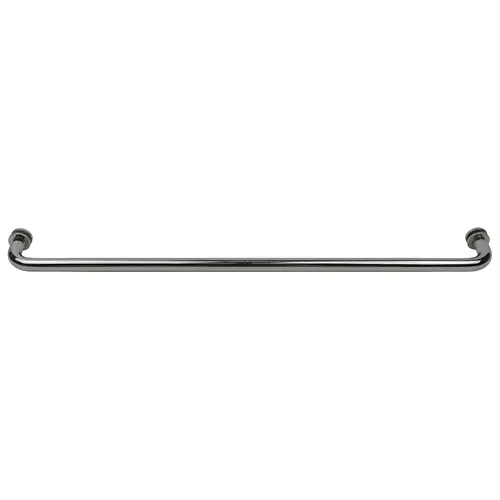

CRL BM28CH Polished Chrome 28" BM Series Tubular Single-Sided Towel Bar
Item #: BM28CH by CR Laurence
44 reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Use Monolithic Tempered Glass
- Custom Finishes Available
- Custom Finishes Available: Numerous Finish Choices in Sizes Ranging From 12" to 30" (305 to 762 mm)
- Decorative Metal Washers Also Serve to Cover Any Defect in Hole in Glass
- Heavy 3/4" (19 mm) Diameter Brass Tubing (1.5 Mil Thick)
- Numerous Finish Choices in Sizes Ranging From 12" to 30" (305 to 762 mm)
- Our Most Popular Towel Bar
Hole Spacing
28" (711 mm) Center-to-Center
Projection From Surface
2-1/2" (63.5 mm)
Thread Size
1/4"-20
Hole Diameter Required
1/2" (12 mm)
Finish
Polished Chrome
Mounting Type
Glass Mount - Single Sided
Material
Brass
Construction
Tubular
Glazing Thickness
1/4 To 1/2
Finish/Color
Polished Chrome
Series
BM
Style Washers
Yes
Style Washer Diameter (Inches)
1-1/4
Mounting Center To Center (Inches)
28
Diameter
3/4
Mounting Style
Glass Mount - Single Sided
Center To Center (Inches)
28
Diameter (Inches)
3/4
Mounting Center To Center
28 in. (711 mm)
Style Washer Diameter
1-1/4 in. (32 mm)
Product Overview
The BM Series of Single-Sided Towel Bars With Metal Washers are designed for glass mounting on fixed panels or doors. The 3/16" low profile end caps make this an ideal bar for sliding bypass doors as well. The bars are constructed of 1.5 mil thick heavy brass tubing. Decorative metal back-up washers are included, as well as plastic washers to protect against glass-to-metal contact.
SPECIFICATIONS:
Material: 3/4" (19 mm) Diameter Brass Tubing (1.5 mil thick); 1-1/4" (32 mm) Diameter Metal Washers
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Hole Diameter Required: 1/2" (12 mm)
Thread Size: 1/4"-20
Center-to-Center Hole Spacing:
12" Towel Bar = 12" (305 mm)
18" Towel Bar = 18" (457 mm)
20" Towel Bar = 20" (508 mm)
22" Towel Bar = 22" (559 mm)
24" Towel Bar = 24" (610 mm)
26" Towel Bar = 26" (660 mm)
27" Towel Bar = 27" (686 mm)
28" Towel Bar = 28" (711 mm)
30" Towel Bar = 30" (762 mm)
AVAILABLE SIZES:
CAT. NO. BM12 12" Towel Bar
CAT. NO. BM18 18" Towel Bar
CAT. NO. BM20 20" Towel Bar
CAT. NO. BM22 22" Towel Bar
CAT. NO. BM24 24" Towel Bar
CAT. NO. BM26 26" Towel Bar
CAT. NO. BM27 27" Towel Bar
CAT. NO. BM28 28" Towel Bar
CAT. NO. BM30 30" Towel Bar
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
