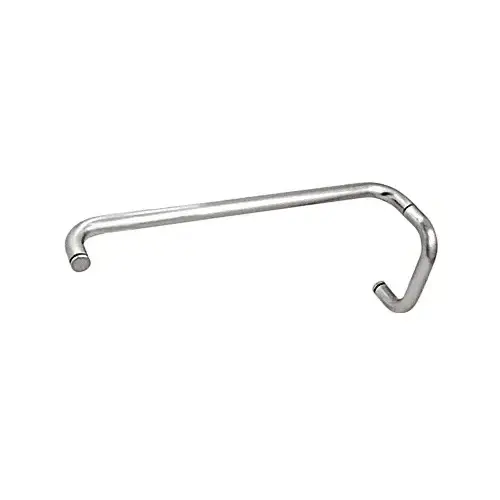

CRL BMNW6X18CH Polished Chrome 6" Pull Handle and 18" Towel Bar BM Series Combination Without Metal Washers
Item #: BMNW6X18CH by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Use Monolithic Tempered Glass
- Heavy 3/4" (19 mm) Diameter Tubular Construction (1.5 mil Thick)
- No Metal Washers Creates a Sleek, Continuous Profile
- Several Sizes in Our Most Popular Finishes
Handle
6" (152 mm)
Tube Diameter
3/4 in (19 mm)
Projection From Surface
2-1/2" (63.5 mm)
Thread Size
1/4"-20
Hole Diameter Required
1/2 in (12.7 mm)
Towel Bar
18" (457 mm)
Finish
Polished Chrome
Mounting Type
Glass Mount -Towel Bar / Pull
Material
Brass
Construction
Tubular
Glazing Thickness
1/4 To 1/2
Finish/Color
Polished Chrome
Towel Bar Mounting Center To Center (Inches)
18
Pull Mounting Center To Center (Inches)
6
Diameter
3/4
Mounting Style
Glass Mount -Towel Bar / Pull
Style Washers
No
Towel Bar Mounting Center To C
18 Inches
Pull Mounting Center To Center
6 Inches
Diameter (Inches)
3/4
The CRL BM Series of Pull Handle/Towel Bar Combinations Without Metal Washers are provided with all the hardware required for installation. They are constructed of 1.5 mil thick heavy brass tubing. Each set consists of a pull handle/towel bar set, along with plastic washers to protect against glass-to-metal contact.
SPECIFICATIONS:
Material: 3/4" (19 mm) Diameter Brass Tubing (1.5 mil thick)
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Hole Diameter Required: 1/2" (12 mm)
Center-to-Center Hole Spacing:
6" Pull = 6" (152 mm)
8" Pull = 8" (203 mm)
12" Pull = 12" (305 mm)
12" Towel Bar = 12" (305 mm)
18" Towel Bar = 18" (457 mm)
22" Towel Bar = 22" (559 mm)
24" Towel Bar = 24" (610 mm)
AVAILABLE SIZES:
Cat. No. BMNW6X12 6" Pull/12" Towel Bar
Cat. No. BMNW6X18 6" Pull/18" Towel Bar
Cat. No. BMNW6X22 6" Pull/22" Towel Bar
Cat. No. BMNW6X24 6" Pull/24" Towel Bar
Cat. No. BMNW8X18 8" Pull/18" Towel Bar
Cat. No. BMNW8X22 8" Pull/22" Towel Bar
Cat. No. BMNW8X24 8" Pull/24" Towel Bar
Cat. No. BMNW12X24 12" Pull/24" Towel Bar
.
