The CRL Adjustable Prima Series makes mounting top and bottom hinges easier than ever. Adjusting up to 5 degree both in and out to the desired door alignment can be done after the initial installation. The small Allen screws on the front and rear of the base plate are loosened using the provided 3 mm Allen Wrench, allowing positioning of the door to the desired closing position. Tightening the Allen screws ensures that the door closes to the same position every time.
NOTE: Not compatible with Header Systems.
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum width of 31" (787 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, 3 mm Allen Wrench, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

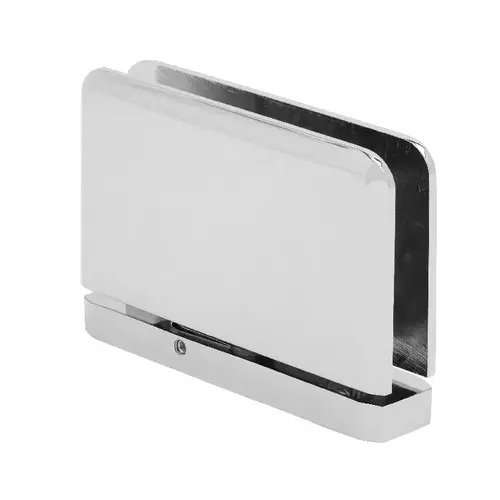

CRL PPH301CH CRL Polished Chrome Adjustable Prima Series Hinge
Item #: PPH301CH by CR Laurence
Brand: CRL
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Use Monolithic Tempered Glass
- Not Compatible with Header Systems
- Self-Centering When within 15 Degree of Closed Position
- Three Year Warranty
3/8" (10 MM) GLASS
31"/787 mm - 100 lbs/45 kg
5/16" (8 MM) GLASS
31"/787 mm - 100 lbs/45 kg
Finish
Polished Chrome
Edge Profile
Beveled
Maximum Door Width
31
Mounting Type
Head & Sill Mount
Maximum Door Weight - 2 Hinges
100 Lbs.
Glazing Thickness
5/16 To 3/8
Material
Brass
Adjustable
Yes
Finish/Color
Polished Chrome
Series
Prima
Self-Centering
Yes
Mounting Style
Head & Sill Mount
5 Degree Pre-Set
No
Maximum Door Weight
100 lbs. (45.4 kg)
Maximum Door Weight - 2 Hinges
100
Opening Style
Pivot(floor)
Enclosure Type
Corner, Niche, Tailor Made Solutions
Design Style
Beveled
Product Overview
The CRL Adjustable Prima Series makes mounting top and bottom hinges easier than ever. Adjusting up to 5 degree both in and out to the desired door alignment can be done after the initial installation. The small Allen screws on the front and rear of the base plate are loosened using the provided 3 mm Allen Wrench, allowing positioning of the door to the desired closing position. Tightening the Allen screws ensures that the door closes to the same position every time.
NOTE: Not compatible with Header Systems.
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum width of 31" (787 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, 3 mm Allen Wrench, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
