The CRL Classique Shower Door Hinge is a design apart from traditional hinges. The beautiful round design and beveled edges are the result of an artist's unique concept of the perfect hinge for décors with strong curved and contoured influences. There are five distinct models, including a Flush Back Plate Wall Mount Hinge for clean exterior sight lines. The Classique's beveled edges make an excellent presentation of sleek design, while the solid brass construction ensures superior quality and long life.
Using two hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum width of 31" (787 mm).
Using three hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum width of 34" (864 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Round design and beveled edges to match curved or contoured décors.
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Precise Closing to 0º
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

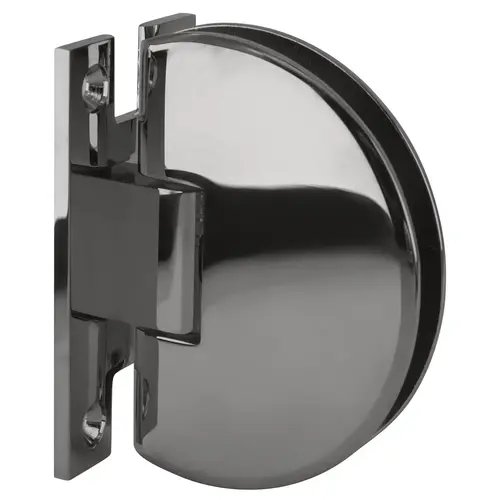

CRL CLA037CH Polished Chrome Classique 037 Series Wall Mount 'H' Back Plate Hinge
Item #: CLA037CH by CR Laurence
Item Discontinued!See reviewsSee reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Features Round Design and Beveled Edges
- Wall Mount Standard Back Plate
- Use Monolithic Tempered Glass
Width
2-1/2
Finish
Polished Chrome
Back Plate
'H'
Glazing Thickness
5/16, 3/8
Maximum Door Weight
80
Edge Profile
Beveled
Adjustable
No
Finish/Color
Polished Chrome
Series
Classique
5 Degree Pre-Set
No
Maximum Door Width - 2 Hinges
31"
Maximum Door Width - 3 Hinges
34"
Maximum Door Weight - 3 Hinges
120 Lbs.
Mounting Type
Wall Mount
Material
Brass
Maximum Door Weight - 2 Hinges
80 Lbs.
Mounting Style
Wall mount
Maximum Door Weight
80 Lbs.
Maximum Door Weight - 2 Hinges
80 lbs. (36.3 kg)
Maximum Door Weight - 3 Hinges
120 lbs. (54.4 kg)
Product Overview
The CRL Classique Shower Door Hinge is a design apart from traditional hinges. The beautiful round design and beveled edges are the result of an artist's unique concept of the perfect hinge for décors with strong curved and contoured influences. There are five distinct models, including a Flush Back Plate Wall Mount Hinge for clean exterior sight lines. The Classique's beveled edges make an excellent presentation of sleek design, while the solid brass construction ensures superior quality and long life.
Using two hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum width of 31" (787 mm).
Using three hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum width of 34" (864 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Round design and beveled edges to match curved or contoured décors.
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Precise Closing to 0º
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
.
