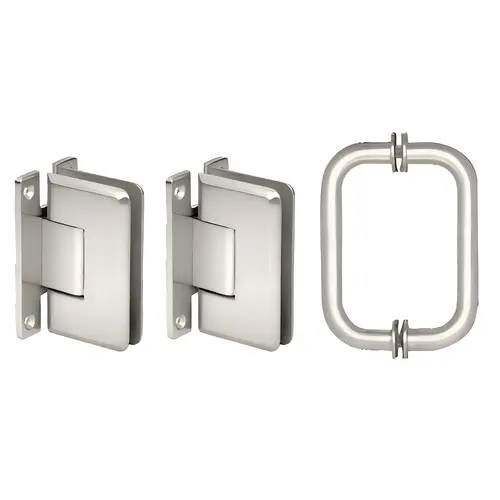

CRL C0LS3CH Polished Chrome Cologne 037 Hinge And Shower Pull Handle Set, Brass Material, Wall Mount, 3/8" To 1/2" Glazing Thickness
Item #: C0LS3CH by CR Laurence
Brand: CRL
22 reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from brass with a polished chrome finish, providing a consistent aesthetic for bathroom shower door hardware.
- Designed for 3/8" to 1/2" monolithic tempered glass, suitable for various frameless shower door configurations.
- Features a wall mount design with a full back plate and beveled edge profile for a clean installation.
- Self-centering hinge mechanism allows the door to return to the closed position for consistent operation.
- Supports a maximum door weight of 110 lbs with 2 hinges or 140 lbs with 3 hinges, with a maximum door width of 36".
- Includes two C0L037 wall mount hinges and one BM6X6 pull handle set with metal washers for complete assembly.
- Clamping screws feature a maximum torque of 60 lbf.in, ensuring a stable connection to the glass panels.
Glass Fitting
5/16" to 1/2" (8 to 12 mm)
Type
CRL Hinge and Shower Pull Handle Set
Hinges
for 3/8" to 1/2" (10 to 12 mm) Glass
Finish
Polished Chrome
Mounting Type
Wall Mount
Material
Brass
Back Plate
Full
Glazing Thickness
3/8 to 1/2
Maximum Door Width
36
Edge Profile
Beveled
Adjustable
No
Finish/Color
Polished Chrome
Series
Cologne
Self-Centering
Yes
5 Degree Pre-Set
No
Maximum Door Weight - 3 Hinges
140 Lbs.
Maximum Door Weight - 2 Hinges
110 Lbs.
Maximum Door Weight - 2 Hinges
110 lbs. (49.9 kg)
Maximum Door Weight - 3 Hinges
140 lbs. (63.5 kg)
Maximum Clamping Screw Torque
60 lbf.in (677.9 cN.m)
Product Overview
The Polished Chrome Cologne 037 Hinge and Shower Pull Handle Set is a combination of two wall mount hinges and one pull handle set for glass shower doors. Constructed from brass with a polished chrome finish, this set is designed for residential or hotel shower enclosures. The hinges are compatible with 3/8" to 1/2" monolithic tempered glass. The set features a full back plate design and a beveled edge profile. The hinges are self-centering and support a maximum door weight of 110 lbs when using 2 hinges, or 140 lbs when using 3 hinges. The maximum door width supported is 36". The clamping screws have a maximum torque of 60 lbf.in. This set includes two C0L037 wall mount hinges and one BM6X6 pull handle set with metal washers. Installation requires the use of the provided template for accurate cut-out dimensions.
