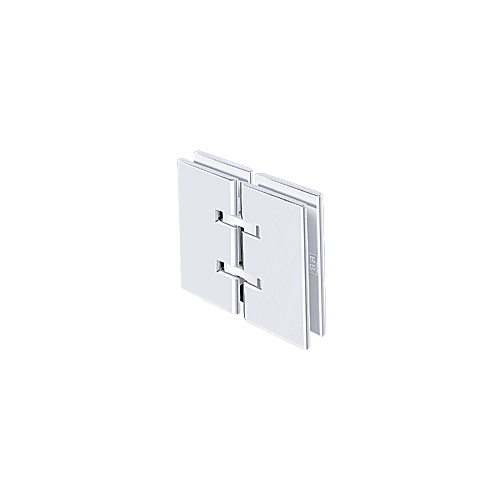

CRL SDH180CH Polished Chrome Concord 180 Series 180 Degree Glass-to-Glass Hinge

Item #: SDH180CH by CR Laurence

See reviews

In Stock $115.99 /each

SAVE UP TO 11.60

Buying in bulk

Roll over image to zoom in

CRL SDH180CH Polished Chrome Concord 180 Series 180 Degree Glass-to-Glass Hinge

Item #: SDH180CH by CR Laurence

See reviews See reviews

In Stock $115.99 /each

SAVE UP TO 11.60

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Self-Centering Action
  • Available in Several Beautiful Finishes
  • 180 Degree Glass-to-Glass
  • Use Monolithic Tempered Glass

Height

3-1/2

Width

2" (51 mm)

Finish

Polished Chrome

Mounting Type

Glass To Glass

Material

Brass

Glazing Thickness

3/8 to 1/2

Edge Profile

Square

Finish/Color

Polished Chrome

Maximum Door Width - 1/2 Glass - 3 Hinges (Inches)

30

Width - Sidelite Portion (Inches)

2

Self-Centering

Yes

Maximum Door Weight - 3 Hinges (Pounds)

120

Maximum Door Weight - 2 Hinges (Pounds)

80

Width - Door Portion (Inches)

2

Maximum Door Width - 3/8 Glass - 2 Hinges (Inches)

28

Maximum Door Width - 3/8 Glass - 3 Hinges (Inches)

34

Glass To Glass Angle (Degrees)

180

Maximum Door Width - 1/2 Glass - 2 Hinges (Inches)

26


The variety of styles and finishes in our Concord Series allows the installer/designer to create custom shower enclosures limited only by their imagination. These beautifully finished, solid brass forged Concord Hinges make it possible to mount 3/8" to 1/2" (10 to 12 mm) thick tempered safety glass shower doors without surrounding frames, so the door has an almost "floating" appearance. Their heavy-duty stainless steel springs allow the door to swing 90 degree in and 90 degree out. A friction cam allows the door to be firmly maintained in any position, except when within 15 degree of the closed position, where they are tapered to assist in centering the door.
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width for 3/8" glass of 28" (711 mm) and maximum door width for 1/2" of 26" (660 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width for 3/8" glass of 34" (864 mm) and maximum door width for 1/2" of 30" (762 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Special Features: Our original hinge offers years of reliability and elegance.
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
