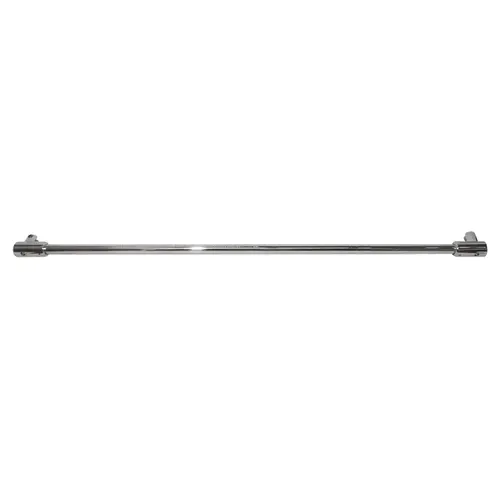

CRL SUP20CH Polished Chrome 39" Sleeve-Over Glass-To-Glass Support Bar for 3/8" to 1/2" Thick Glass
Item #: SUP20CH by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Use Monolithic Tempered Glass
- For 3/8" to 1/2" (10 to 12 mm) Glass
- May be Used as an Alternative to CRL Header Kits to Secure Fixed Panels and Provide Safety
- No Hole Drilling Required
- Simply Cut to Size to Accommodate Individual Configurations
- Wall-to-Glass and Glass-to-Glass Models Available for 1/4" to 1/2" (6 to 12 mm) Glass
3/8" to 1/2" (10 to 12 mm)
3/8 to 1/2
Glass To Glass
These CRL Fixed Panel Support Bars stabilize fixed panels of glass in enclosures that do not go all the way up to the ceiling. The Glass-to-Glass Bar has solid brass end caps with swiveling U-shaped receptacles on both ends to secure each fixed panel. Nylon-tipped set screws secure the glass and prevent glass-to-metal contact. Bars are available in two lengths, and in sizes to secure 1/4" to 1/2" (6 to 12 mm) thick glass. Finishes are available to match most of our hinges, knobs, and pull handles. No holes or cut-outs are required in the glass.
Material: 3/4" (19 mm) Diameter Tubular Brass Bar, Solid Brass Fittings
Bar Lengths: 39" (1 m); 51" (1.3 m)
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Includes: All Required Mounting Hardware
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
