CRL Square Wall Mount Movable Transom Clamps are designed to rotate a movable transom off a wall. Clamp must be centered on the transom to achieve balanced movement. Maximum movable transom size is 16" x 30" (406 x 762 mm). NOTE: Replacement Nylon Washer is Cat. No. 90295A120. Replacement Gasket is Cat. No. SGCU1G.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 Require 3/4" (19 mm) Holes
Includes: Gaskets and Mounting Screws
NOTE: Maximum transom size is 16" x 30" (406 x 762 mm) wide. Larger transoms require the use of pivot hinges used as transom clamps. Call for details.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

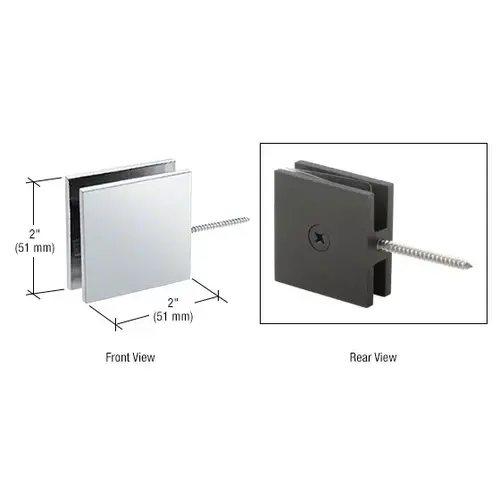

CRL SGC186CH Polished Chrome Square Wall Mount Movable Transom Clamp
Item #: SGC186CH by CR Laurence
22 reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Use Monolithic Tempered Glass
- For 3/8" to 1/2" (10 to 12 mm) Thick Glass
- Glass Transom Swivels to Allow Release of Steam
- Solid Brass Material
- Wall Mount, and 180 Degree Models Available
Size
2" (51 mm) Wide x 2" (51 mm) High
Hole Required in Glass
3/8" to 1/2" (10 to 12 mm)
Finish
Polished Chrome
Mounting Type
Wall Mount
Material
Brass
Glazing Thickness
3/8 to 1/2
Finish/Color
Polished Chrome
Mounting Style
Wall mount
Enclosure Type
Niche, Tailor Made Solutions
Design Style
Squared
Product Overview
CRL Square Wall Mount Movable Transom Clamps are designed to rotate a movable transom off a wall. Clamp must be centered on the transom to achieve balanced movement. Maximum movable transom size is 16" x 30" (406 x 762 mm). NOTE: Replacement Nylon Washer is Cat. No. 90295A120. Replacement Gasket is Cat. No. SGCU1G.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 Require 3/4" (19 mm) Holes
Includes: Gaskets and Mounting Screws
NOTE: Maximum transom size is 16" x 30" (406 x 762 mm) wide. Larger transoms require the use of pivot hinges used as transom clamps. Call for details.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
