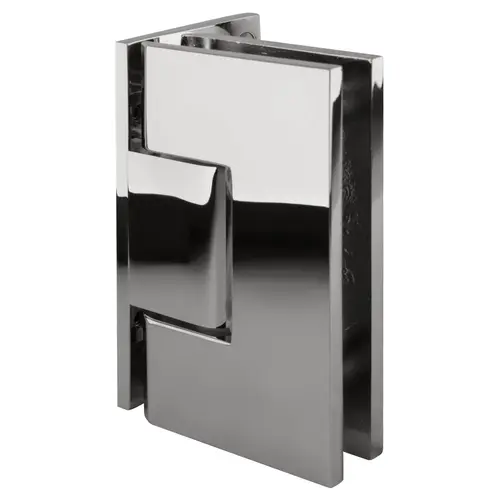

CRL V1E044CH Polished Chrome Vienna 044 Series Wall Mount Offset Back Plate Hinge, Brass Material, 3/8" And 1/2" Glazing, Polished Chrome
Item #: V1E044CH by CR Laurence
Brand: CRL
22 reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from solid brass with a polished chrome finish for use in bathroom shower door hardware.
- Designed for 3/8" to 1/2" tempered safety glass, suitable for various shower enclosure configurations.
- Features a wall mount offset back plate design for mounting shower doors to walls in corner or niche setups.
- Includes a reversible pivot pin allowing for 90-degree or 85-degree closure positions for precise door alignment.
- Supports up to 100 lbs with 2 hinges or 130 lbs with 3 hinges, accommodating door widths up to 34".
- Self-centering mechanism engages within 15 degrees of the closed position for consistent door operation.
- Includes gaskets, screws, and glass fabrication dimensions for installation on rectangular or mouse-ear cut-outs.
Finish
Polished Chrome
Back Plate
Offset
Glazing Thickness
3/8, 1/2
Adjustable
No
Finish/Color
Polished Chrome
Series
Vienna
Maximum Door Width -1/2 Glass
32"
Self-Centering
Yes
Maximum Door Width - 3/8 Glass
34"
5 Degree Pre-Set
No
Maximum Door Weight - 3 Hinges
130 Lbs.
Maximum Door Weight - 2 Hinges
100 Lbs.
Mounting Type
Wall Mount
Material
Brass
Maximum Door Width - 1/2 Glass
32 in. (813 mm)
Maximum Door Weight - 2 Hinges
100 lbs. (45.4 kg)
Maximum Door Weight - 3 Hinges
130 lbs. (59 kg)
Mounting Style
Wall mount
Maximum Clamping Screw Torque
60 lbf.in (677.9 cN.m)
Opening Style
Swing(side)
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Design Style
Squared
Height
3-15/16 in. (100 mm)
Width
2-1/4 in. (57 mm)
Maximum Door Width - 3/8 Glass
34 in. (864 mm)
Maximum Door Width - 1/2 Glass - 2 Hinges
32 in. (813 mm)
Maximum Door Width - 1/2 Glass - 3 Hinges
32 in. (813 mm)
Maximum Door Width - 3/8 Glass - 2 Hinges
34 in. (864 mm)
Maximum Door Width - 3/8 Glass - 3 Hinges
34 in. (864 mm)
Maximum Door Width -1/2 Glass
32
Product Overview
The Polished Chrome Vienna 044 Series Wall Mount Offset Back Plate Hinge is designed for mounting shower doors to walls. Constructed from solid brass, this hinge is suitable for residential or hotel shower enclosures. It accommodates 3/8" to 1/2" tempered safety glass. The hinge features a self-centering mechanism that activates when within 15 degrees of the closed position and allows for 90-degree inward and outward swings. It includes a reversible pivot pin, with the 90-degree side activated by default, and an 85-degree option for tighter closure. Two steel pins inside allow for template options, supporting either "mouse-ears" or rectangular cut-outs. When using two hinges with 3/8" glass, the maximum door weight is 100 lbs with a maximum width of 34". With 1/2" glass, it supports 100 lbs with a maximum width of 32". Using three hinges increases the capacity to 130 lbs for both glass thicknesses. The hinge includes gaskets, screws, and glass fabrication dimensions. The maximum clamping screw torque is 60 lbf.in. The finish is polished chrome.
