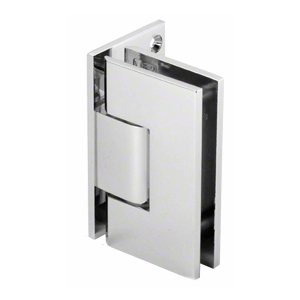

CRL V1E344CH Polished Chrome Vienna Adjustable Wall Mount Offset Back Plate Hinge
Item #: V1E344CH by CR Laurence
In Stock $98.37 /each
Buying in bulk
Roll over image to zoom in
CRL V1E344CH Polished Chrome Vienna Adjustable Wall Mount Offset Back Plate Hinge
Item #: V1E344CH by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Adjustable up to 90 Degrees
- Available in Multiple Finishes
- Offset Wall Mount Plate for Clean Site Line
Height
3-15/16
Finish
Polished Chrome
Mounting Type
Wall Mount
Material
Brass
Width
2-5/16
Back Plate
Offset
Glazing Thickness
3/8, 1/2
Adjustable
Yes
Finish/Color
Polished Chrome
Maximum Door Width -1/2 Glass (Inches)
32
Self-Centering
Yes
Maximum Door Width - 3/8 Glass (Inches)
34
5 Degree Pre-Set
No
Maximum Door Weight - 3 Hinges (Pounds)
130
Maximum Door Weight - 2 Hinges (Pounds)
100
The Vienna Offset Wall Mount Plate Adjustable Hinge adjusts to accommodate desired angles up to 90 degrees. Simply loosen the Allen Screws on the rear of the hinge, position the door to the desired closing position, then re-tighten the Allen Screws. For best results, use with a strike jamb and position the door to push against the jamb for a snug close. Offset Wall Mount Plate leaves clean site line.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
