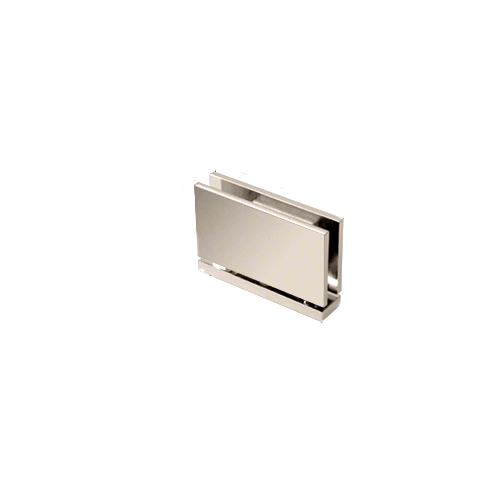

CRL SRCAR01PN Polished Nickel Senior Cardiff Series Hinge

Item #: SRCAR01PN by CR Laurence

See reviews

In Stock $126.13 /each

SAVE UP TO 12.61

Buying in bulk

Roll over image to zoom in

CRL SRCAR01PN Polished Nickel Senior Cardiff Series Hinge

Item #: SRCAR01PN by CR Laurence

See reviews See reviews

In Stock $126.13 /each

SAVE UP TO 12.61

Buying in bulk


Usually ships in 1 business day

+ Add to Wishlist

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Use Monolithic Tempered Glass
  • Adaptable to CRL Deluxe Header System
  • Larger Version of the Popular Cardiff Series to Accommodate 1/2" (12 mm) Thick Glass
  • Square Corners for a Sharp, Traditional Look
  • Stocked in Many Popular Hardware Finishes
  • Top or Bottom Mount (Can be Adapted to Deluxe Header Kit)


2-5/8" (67 mm)

Minimum Order

1 Each


Polished Nickel

Maximum Width

36 in (914 mm)

For Use With

1/2 in (12 mm) Glass


4-3/4" (121 mm)

Maximum Weight

145 Lbs (66 kg)

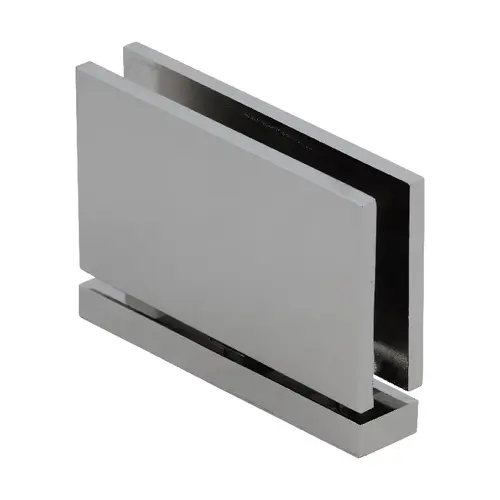

CRL Senior Cardiff Series Top and Bottom Mount Pivot Hinges are designed for use with 1/2" (12 mm) thick tempered safety glass. Some advantages of the Top and Bottom Mount Pivot Hinges include the fact that they carry the majority of the door weight on the bottom hinge, and have the ability to be inset from the door edge, enabling sufficient clearance for towel bars or other projections.
Senior Cardiff Hinges are self-centering, with four strong springs for maximum retention strength. The Senior Cardiff Hinge is adaptable to our Deluxe Header System for enclosures not reaching the ceiling, by utilizing our Senior Adapter Block. NOTE: Must order SRHAB01 Adaptor Block separately. They also can be simply floor and ceiling mounted for doors that do reach the ceiling.
Using two hinges with 1/2" glass (12 mm) the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).
Glass Thickness: 1/2" (12 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared against use of side mount glass-to-glass hinges requiring more cut-outs.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).
NOTE: Use SRP1VP1N (sold separately) 5 degree Pivot Pins for 1/2" (12 mm) Thick Glass Option for 5 degree tighter door closer. Sold as a set, one for top hinge and one for bottom hinge. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
