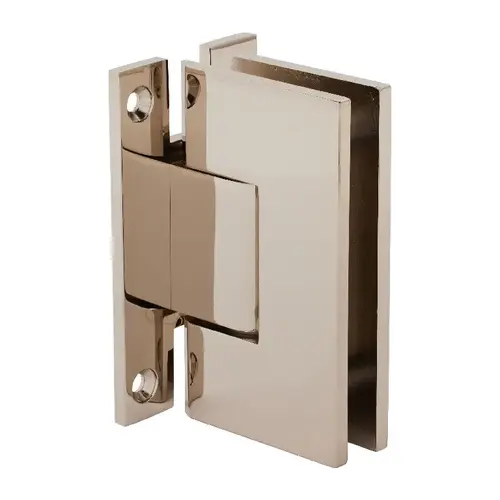

CRL V1EH037PN Polished Nickel Vienna 037 Series Wall Mount 'H' Back Plate Hinge
Item #: V1EH037PN by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- New Wall Plate Design Allows for Tighter Clearance
- Same Vienna Quality with a Different Look
- Square Design is the Most Contemporary Look
Finish
Polished Nickel
Mounting Type
Wall Mount
Material
Brass
Width
2-1/4
Back Plate
'H'
Glazing Thickness
3/8, 1/2
Maximum Door Width
36
Adjustable
No
Finish/Color
Polished Nickel
Self-Centering
Yes
5 Degree Pre-Set
No
Maximum Door Weight - 3 Hinges (Pounds)
140
Maximum Door Weight - 2 Hinges (Pounds)
110
Height
3-15/16
Maximum Door Weight - 2 Hinges
110 lbs. (49.9 kg)
Maximum Door Weight - 3 Hinges
140 lbs. (63.5 kg)
Mounting Style
Wall mount
Height (Inches)
3-15/16
Max Dr Weight - 3 Hinges (Lbs)
140
Max Dr Weight - 2 Hinges (Lbs)
110
Width (Inches)
2-1/4
The Vienna product line has been updated to include an "H" shaped wall mounting plate, allowing the installer to get the glass closer to the wall. This new design will give increased flexibility in regards to the clearance between the glass and the wall.
.
