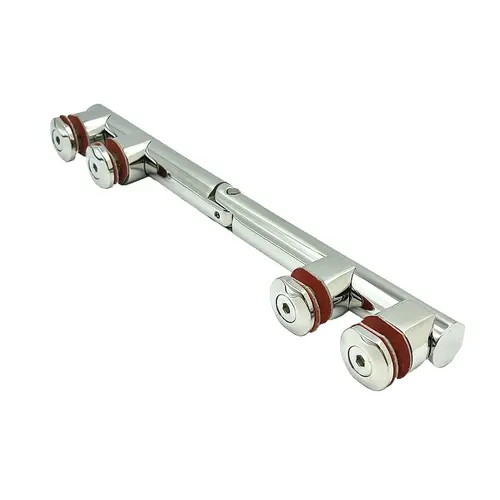

CRL ARC180PS Polished Stainless Arctic 180 Series Glass-to-Glass Hinge
Item #: ARC180PS by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Our Most Unique Design for the Construction of Frameless Showers
- Set Doors at 90º, 135º, 180º or Anywhere in Between
- Use Monolithic Tempered Glass
- Constructed of Stainless Steel in Your Choice of Brushed or Polished Finishes
- Fits 5/16" and 3/8" (8 and 10 mm) Thick Glass (Holes Required)
- Choice of Two Mounting Options: Glass-to-Glass and Glass-to-Wall
Shipping Weight
1 lb (454g)
Length
5-1/2" (140 mm)
Finish
Polished Stainless
Product Overview
For a unique, new look in Frameless Shower Door Hinges go no further than our CRL Arctic Series. Constructed of stainless steel, the Arctic Hinge comes in Glass-to-Glass and Glass-to-Wall models. Both are intended for use with 5/16" and 3/8" (8 and 10 mm) tempered safety glass. Neither requires that the glass be notched, only that each glass panel have two 1/2" (12 mm) holes drilled for the through-bolts. The body of the Arctic Hinge is all stainless steel, with a pivot point that swings a full 180º. The Arctic Glass-to-Glass Model gives you the option to set doors at 90º, 135º, or 180º, or anywhere in between. That's a feature most other hinges can't offer. If you're looking for something unique in frameless hinges, try the Arctic Series.
NOTE: Arctic is not available in Europe.
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 90 lbs. (41 kg) with a maximum door width of 30" (762 mm).
Using three hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 34" (864 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm) Tempered Safety Glass
Special Features: Doors can be set at 90º, 135º, 180º or anywhere in between.
Construction: Stainless Steel
Hinge Swings: Up to 180 degree Rotation (Requires Stop)
Closing Type: Free-Swinging
Two 1/2" (12 mm) Diameter Holes Required per Glass Panel
Includes: Gaskets, Screws (Glass-to-Wall Model), and Glass Fabrication Dimensions Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use.
NOTE: Arctic is not available in Europe.
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 90 lbs. (41 kg) with a maximum door width of 30" (762 mm).
Using three hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 34" (864 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm) Tempered Safety Glass
Special Features: Doors can be set at 90º, 135º, 180º or anywhere in between.
Construction: Stainless Steel
Hinge Swings: Up to 180 degree Rotation (Requires Stop)
Closing Type: Free-Swinging
Two 1/2" (12 mm) Diameter Holes Required per Glass Panel
Includes: Gaskets, Screws (Glass-to-Wall Model), and Glass Fabrication Dimensions Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use.
