Polished Stainless Zurich 05 Series Wall Mount Outswing Hinge

Roll over image to zoom in

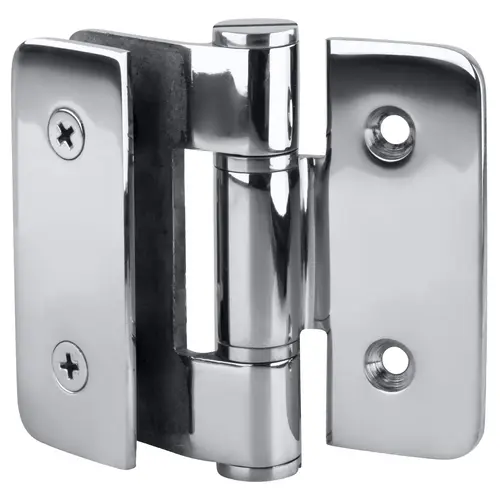

CRL ZUR05PS Polished Stainless Zurich 05 Series Wall Mount Outswing Hinge

Item #: ZUR05PS by CR Laurence

1 1 reviews

In Stock $73.86 /each


Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Use Monolithic Tempered Glass
  • Ideal for Bi-Fold Application
  • Wall Mount Outswing

Using 2 Hinges

5/16" (8 MM) or 3/8" (10 MM) GLASS 100 lbs/45 kg 36"/914 mm

Using 3 Hinges

5/16" (8 MM) or 3/8" (10 MM) GLASS 150 lbs/68 kg 40"/1016 mm






Polished Stainless

Back Plate


Glazing Thickness

5/16 To 3/8




Polished Stainless Steel



5 Degree Pre-Set


Maximum Door Width - 2 Hinges (Inches)


Maximum Door Width - 3 Hinges (Inches)


Maximum Door Weight - 3 Hinges (Pounds)


Maximum Door Weight - 2 Hinges (Pounds)


Mounting Type

Wall Mount


Stainless Steel

The CRL Zurich Series of professional Hinges for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass was the first Bi-fold Hinge offered by CRL. All seven Zurich Hinge models feature stainless steel or brass construction, and are available in up to 13 finishes. Only two holes per Hinge per panel are required, with no cut-out necessary.

Use Item No. P512 Replacement Screws for Cover Plate available in multiple finishes. Conveniently packaged in packs of 100.
NOTE: Not Available in Germany.
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 150 lbs. (68 kg) with a maximum door width of 40" (1.02 m).
  • Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
  • Special Features: Ideal for Bi-Fold Application. Use ZUR01 and ZUR03 for doors that fold into tub area. Use ZUR02 and ZUR05 for doors that fold out to bathroom area.
  • Construction: Stainless Steel or Solid Brass
  • Hinge Swings: See descriptions next to photos of hinges.
  • Closing Type: Free-Swinging
  • Two Holes Required Per Hinge Per Panel (No Cut-Out)
  • Includes: Gaskets, Screws, and Glass Fabrication Dimensions
    Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department.
    Product Warning:
    CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
    Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

    Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
