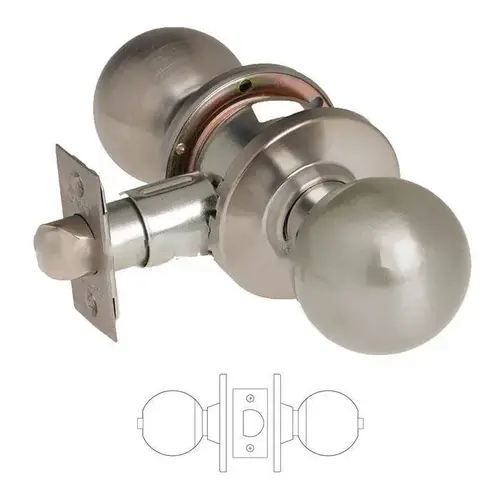

Sargent 6U65OB26D 6500 Series U65 Privacy/Bathroom Knob Lockset, Satin Chrome

6 LineBored Lock

Incorporating a broad spectrum of functions, designs and finishes, the 6 Line® is a highly styled standard duty lock, easily customized to suit fine homes, hotels and commercial buildings. Installs with just two lockbody screws for easy installation and maintenance.

Features:

• Latches available in four standard backsets

• Non-handed or field reversible

• Fits standard ANSI/BHMA A156.115 door prep

Certification Compliance: ANSI:

• Certified ANSI A156.2 Series 4000 — Grade 2

UL:

• UL listed to U.S.A. and Canadian safety standards Listed for 3 Hour Doors

Positive Pressure:

• Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Asse

Specifications: For Doors:

• 1-3/8" (35mm) thick door adjustable to 1-3/4" (44mm)

Backsets:

• 2-3/8" (60mm) x 1" (25mm) standard

Bored Housing:

• Steel, zinc dichromate finish

Strike:

• Wrought brass, bronze or stainless steel 800 curved lip strike standard

Hand:

• Non-cylinder locks — non-handed
• Cylinder type locks — reversible in field

Knobs:

• Heavy wrought brass or bronze

Roses:

• Heavy wrought brass or bronze

Latch:

• Brass x 1/2" (13mm) throw

Cylinder:

• Brass, 6 pin, LA keyway standard

Keys:

• Two, nickel silver

Masterkeying:

• Can be master keyed or grand master keyed Construction key systems available

Finishes:

• 3, 4, 10, 10B, 10BE, 26, 26D

Door Prep:

• 160 Standard Door Prep

Minimum Stile:

• 4" (102mm) with B and O roses
• 4-1/2" (114mm) with E and L roses

Versatility:

• Lockbody fits doors from 1-3/8" (35mm) to 1-3/4" (44mm) thick

• Latches are available in 4 standard backsets

• Non-handed or field reversible

• Fits ANSI 115.2 (160) door prep

• Multiple latches and strike options available including radius/round applications

• Wide variety of functions and options

Quality:

• Complements and blends with trim designs of other SARGENT locks for unified appearance

• Certified ANSI A156.2 Series 4000 — Grade 2

• Accepts SARGENT standard and high security core cylinders

• Quality finishes with split finishes optional

• Fire Code compliance with all functions depending on application

• MicroShield® permanent silver-base antimicrobial coating.

Convenience:

• Installs with just two lockbody screws for easy installation and maintenance

• Mix rose and knob designs for a custom look — 2 knob and 4 rose designs

Applications:

• Standard duty commercial buildings

• Offices

• Apartment buildings

• Hotel/Motel

• Residential housing

• Retail

• Churches

• Warehouses
