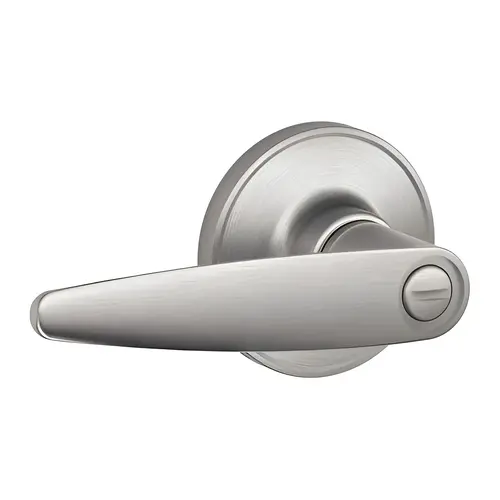

J40 Dover Privacy Lever Lock, Satin Stainless Steel

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Schlage Residential J40 DOV 630 J40 Dover Privacy Lever Lock, Satin Stainless Steel

Item #: J40 DOV 630 by Schlage Residential

UPC #: 043156756476

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$45.60

/each
SAVE UP TO 4.56
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 638 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Bed/Bath (Privacy) Function - Turn Button Locking, Turning Inside Turn Button Releases Inside Knob/Lever
  • ADA Compliant: Yes
  • Applications: Residential single- and multi-family doors
  • ANSI/BHMA A156.36 Grade 3
  • Reversible Handing
  • Backset: Universal latches and deadbolts fit 2-3/8" (60mm) or 2-3/4" (70mm) backsets.
  • Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
  • Includes All Mounting Hardware for Easy Installation
  • Lifetime Mechanical & 5 Year Finish Warranty
  • Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
  • UL Listed: Locks for up to three-hour fire doors available

Finish

Satin Stainless Steel

Function

40-Bed/Bath

Series

J Series

Design

Dover

Handing

Reversible

Strike

Full Lip 2-1/4 Inch, Radius Corner

Backset

2-3/8 Inch or 2-3/4 Inch

Color Code

630(US32D)

Grade

ANSI/BHMA Grade 3

Finish Description

Satin Stainless Steel

Lever Style

DOV-Dover

Rose/Escutcheon Trim

Round Rose

Product Type

Cylindrical Lock

Projection

2.7500

Door Thickness

1-3/8" to 1-3/4"

Bore Size

2.1250

Product Height

2-5/8 Inches

Product Length

4.3750

Included Components

Privacy knobs, roses, latch, strike, mounting hardware

Door Cross Bore

2.125 Inch

Product Material

Zinc

Box Length

6.6900

Box Width

5.7100

Box Height

3.0700

Application

Residential Single- and Multi-Family Doors

Warranty

Lifetime Mechanical Warranty and 5-Year Finish Warranty

ANSI Function

F76

Latch Type

Spring

Strike Type

Full Lip

ADA Compliant

YES

Finish Family

Stainless Steel

Strike Size

1-5/8 x 2-1/4 Inch

Standards

ANSI/BHMA A156.2-2011 Commercial Grade 3

Faceplate Dimension

1/4"

Function Description

Outside knob/lever locked by pushbutton on inside knob/lever. Rotating inside knob/lever or closing door releases/unlocks button. Emergency release in outside knob/lever.

Function Family

Privacy/Bedroom/Bathroom

Product Projection

2-3/4 Inch

Features

Fits on Pre-Drilled Holes; Lever fits with Transitional Styles; Installation with Screwdriver; Self-Aligning Screw

Manufacturer Parent

Allegion

Door Edge Bore

1 Inch

Box Dimensions (L x W x H)

3.07x5.71x6.69

Lever Style Family

Straight Lever

Sub-Series

RL_Lever_Locksets_schlage_residential_165

No of inners

1

Lever Knob Design

Dover Lever

Latch Faceplate Dimension

Round Corner 1" x 2-1/4" Faceplate or 1" Collar

Finish code

630

Cross Bore Size

2-1/8" Bore

Strike Dimension

2-1/4" x 1-5/8" x 1-1/8" Lip

Hazardous Material

No

Door Range

1-3/8" to 1-3/4"

Rose/Escutcheon Design

Round Rose

Manufacturer Warranty

Limited Lifetime Mechanical and 5 Year Finish Warranty

Material

Stainless Steel

Dimension

4-11/16" Lever Length and 2-5/8" Projection with 2-5/8" Diameter Rose

Product Overview
J SeriesLevers

From classic looks that never go out of style to bold contemporary designs, Schlage's levers and door handles fit and accentuate virtually any décor. Available in a variety of functions, you can choose the perfect look for every room in your house - it's the easiest way to give your entire home a style upgrade.

Available Functions: J10/F75 - Hall & Closet*:
  • Both levers always unlocked
J40/F77 - Bed & Bath*:
  • Turn-button locking. Can be opened from outside by turning outside turn mechanism
  • From interior, turning inside turn-button releases inside lever
J40P - Bed & Bath (Pushbutton)*:
  • Push-button locking. Can be opened from outside with small circular tool
  • Turning inside knob/lever releases button
  • ADA Compliant
J170 - Non-turning*:
  • Non-turning trim for one side of door
  • Used for door pull or as matching inactive trim
J54/F82 - Keyed Entry**:
  • Unlocked by key from outside whenouter knob is locked by turn-button in inside knob
  • Inside knob is locked and unlocked by turn-button
  • *Non-keyed Locks
  • **Keyed Locks
Latches & Strikes: Keyed Latches - Dead Latches:
  • 16-255 - Triple Option (Round, Square, Drive-in) - Standard
  • 16-061 - UL Listed, Square Corner
Non Keyed - Spring Latches:
  • 16-254 - Dual Option (Round, Drive-in) - Standard
  • 16-070 - Triple Option Spring Latch for handlesets
Strikes:
  • 10-101 - Round Corner Full Lip - Standard
Specifications: Certification:
  • ANSI/BHMA A156 .2-2011 Commercial Grade 3
Latch:
  • Dual Option: 1" x 2 1/4", 1/4" round faceplate and drive-in
  • Triple Option: 1" x 2 1/4", square corner and round corner faceplate, drive-in latch (J54)
Strike:
  • 1 5/8" x 2 1/4", radius corner, full lip, no box
Backset:
  • Adjustable for 2 3/8" or 2 3/4"
Cylinder:
  • 5-pin, C keyway, keyed alike (KA4)
Door Range:
  • 1 3/8" - 1 3/4"
Keys:
  • Two brass cut keys per lock, 5-pin, C section
Finishes: 605:
  • Bright Brass (US3)
609:
  • Antique Brass (US5)
619:
  • Satin Nickel (US15)
620:
  • Antique Pewter (US15A)
622:
  • Matte Black (US19)
625:
  • Bright Chrome (US26)
626:
  • Satin Chrome (US26D)
630:
  • Satin Stainless Steel (US32D)
716:
  • Aged Bronze
  • *Non-standard finishes are not available
  • Full-color swatch examples available on inside Levers tab
