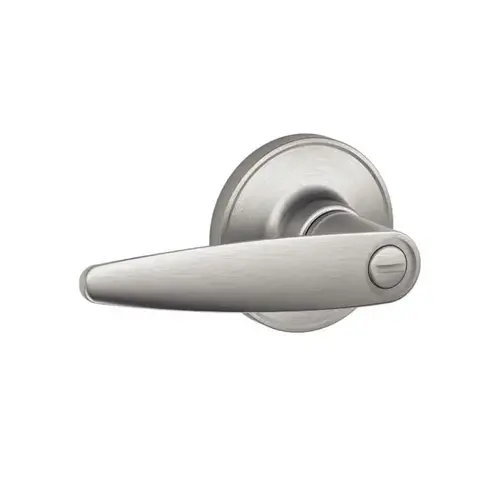

Schlage Residential J40 DOV 630 J40 Dover Privacy Lever Lock, Satin Stainless Steel
Item #: J40 DOV 630 by Schlage Residential
Brand: Schlage Residential
UPC #: 043156756476
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Bed/Bath (Privacy) Function - Turn Button Locking, Turning Inside Turn Button Releases Inside Knob/Lever
- ADA Compliant: Yes
- Applications: Residential single- and multi-family doors
- ANSI/BHMA A156.36 Grade 3
- Reversible Handing
- Backset: Universal latches and deadbolts fit 2-3/8" (60mm) or 2-3/4" (70mm) backsets.
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Includes All Mounting Hardware for Easy Installation
- Lifetime Mechanical & 5 Year Finish Warranty
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- UL Listed: Locks for up to three-hour fire doors available
Finish
Satin Stainless Steel
Function
40-Bed/Bath
Series
J Series
Design
Dover
Handing
Reversible
Strike
Full Lip 2-1/4 Inch, Radius Corner
Backset
2-3/8 Inch or 2-3/4 Inch
Color Code
630(US32D)
Grade
ANSI/BHMA Grade 3
Finish Description
Satin Stainless Steel
Lever Style
DOV-Dover
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Projection
2.7500
Door Thickness
1-3/8" to 1-3/4"
Bore Size
2.1250
Product Height
2-5/8 Inches
Product Length
4.3750
Included Components
Privacy knobs, roses, latch, strike, mounting hardware
Door Cross Bore
2.125 Inch
Product Material
Zinc
Box Length
6.6900
Box Width
5.7100
Box Height
3.0700
Sub-Series
RL_Lever_Locksets_schlage_residential_165
Lever Style Family
Straight Lever
Box Dimensions (L x W x H)
3.07x5.71x6.69
Door Edge Bore
1 Inch
Manufacturer Parent
Allegion
Features
Fits on Pre-Drilled Holes; Lever fits with Transitional Styles; Installation with Screwdriver; Self-Aligning Screw
Product Projection
2-3/4 Inch
Function Family
Privacy/Bedroom/Bathroom
Function Description
Outside knob/lever locked by pushbutton on inside knob/lever. Rotating inside knob/lever or closing door releases/unlocks button. Emergency release in outside knob/lever.
Faceplate Dimension
1/4"
Standards
ANSI/BHMA A156.2-2011 Commercial Grade 3
Strike Size
1-5/8 x 2-1/4 Inch
Finish Family
Stainless Steel
ADA Compliant
YES
Strike Type
Full Lip
Latch Type
Spring
ANSI Function
F76
Warranty
Lifetime Mechanical Warranty and 5-Year Finish Warranty
Application
Residential Single- and Multi-Family Doors
Dimension
4-11/16" Lever Length and 2-5/8" Projection with 2-5/8" Diameter Rose
Material
Stainless Steel
Manufacturer Warranty
Limited Lifetime Mechanical and 5 Year Finish Warranty
Rose/Escutcheon Design
Round Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
2-1/4" x 1-5/8" x 1-1/8" Lip
Cross Bore Size
2-1/8" Bore
Finish code
630
Latch Faceplate Dimension
Round Corner 1" x 2-1/4" Faceplate or 1" Collar
Lever Knob Design
Dover Lever
No of inners
1
ANSI/BHMA Standards
F77
Keyed
No
Handle Type
Lever
Handle Design
Dover Lever
Electronic
No
Lever/Knob Design
Dover Lever
Door Handing
Non-Handed
Lever Design
Dover Lever
Standard Strike
10-101: Round Corner Full Lip
Door Thickness Range
1-3/8" To 1-3/4"
Lock Type
Cylindrical
Standard Latch
16-254: Spring Latch, Dual Option (Round, Drive-in)
Product Overview
J SeriesLevers
From classic looks that never go out of style to bold contemporary designs, Schlage's levers and door handles fit and accentuate virtually any décor. Available in a variety of functions, you can choose the perfect look for every room in your house - it's the easiest way to give your entire home a style upgrade.
Available Functions: J10/F75 - Hall & Closet*:- Both levers always unlocked
- Turn-button locking. Can be opened from outside by turning outside turn mechanism
- From interior, turning inside turn-button releases inside lever
- Push-button locking. Can be opened from outside with small circular tool
- Turning inside knob/lever releases button
- ADA Compliant
- Non-turning trim for one side of door
- Used for door pull or as matching inactive trim
- Unlocked by key from outside whenouter knob is locked by turn-button in inside knob
- Inside knob is locked and unlocked by turn-button
- *Non-keyed Locks
- **Keyed Locks
- 16-255 - Triple Option (Round, Square, Drive-in) - Standard
- 16-061 - UL Listed, Square Corner
- 16-254 - Dual Option (Round, Drive-in) - Standard
- 16-070 - Triple Option Spring Latch for handlesets
- 10-101 - Round Corner Full Lip - Standard
- ANSI/BHMA A156 .2-2011 Commercial Grade 3
- Dual Option: 1" x 2 1/4", 1/4" round faceplate and drive-in
- Triple Option: 1" x 2 1/4", square corner and round corner faceplate, drive-in latch (J54)
- 1 5/8" x 2 1/4", radius corner, full lip, no box
- Adjustable for 2 3/8" or 2 3/4"
- 5-pin, C keyway, keyed alike (KA4)
- 1 3/8" - 1 3/4"
- Two brass cut keys per lock, 5-pin, C section
- Bright Brass (US3)
- Antique Brass (US5)
- Satin Nickel (US15)
- Antique Pewter (US15A)
- Matte Black (US19)
- Bright Chrome (US26)
- Satin Chrome (US26D)
- Satin Stainless Steel (US32D)
- Aged Bronze
- *Non-standard finishes are not available
- Full-color swatch examples available on inside Levers tab
