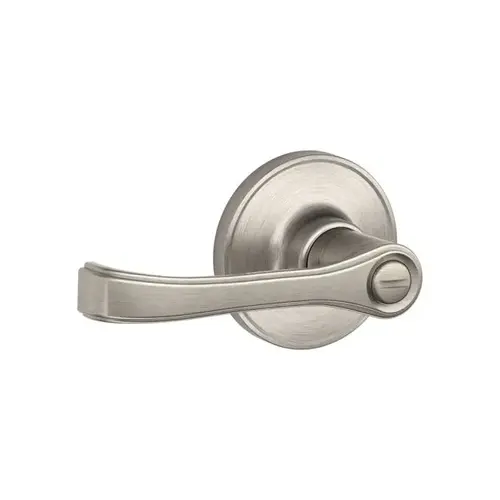

Schlage Residential J40 TOR 619 J Series Privacy Lever, Mechanical Lock, Satin Nickel, Lever Handle, Metal, Residential, Grade 3 Grade
Item #: J40 TOR 619 by Schlage Residential
UPC #: 043156775736
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Bed/Bath (Privacy) Function - Turn Button Locking, Turning Inside Turn Button Releases Inside Knob/Lever
- Easy installation
- ADA Compliant: Yes
- Applications: Residential single- and multi-family doors
- ANSI/BHMA A156.36 Grade 3
- Reversible Handing
- Backset: Universal latches and deadbolts fit 2-3/8" (60mm) or 2-3/4" (70mm) backsets.
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Includes All Mounting Hardware for Easy Installation
- Lifetime Mechanical & 5 Year Finish Warranty
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- UL Listed: Locks for up to three-hour fire doors available
Finish
Satin Nickel
Function
40-Bed/Bath
Series
J Series
Design
Torino
Handing
Reversible
Strike
Full Lip 2-1/4 Inch, Radius Corner
Backset
2-3/8 Inch or 2-3/4 Inch
Color
Satin Nickel Plated Clear Coated
Color Code
619/US15
Grade
ANSI/BHMA Grade 3
Finish Description
Satin Nickel
Lever Style
TOR-Torino
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Projection
2.8800
Door Thickness
1-3/8 to 1-3/4"
Bore Size
2.1250
Product Height
2-5/8"
Product Length
4.0000
Included Components
Privacy knobs, roses, latch, strike, mounting hardware
Door Cross Bore
2.125 Inch
Product Material
Zinc
Box Length
6.6900
Box Width
5.7100
Box Height
3.0700
Application
Residential Single- and Multi-Family Doors
Warranty
Limited lifetime
ANSI Function
F76
Latch Type
Spring Latch
Strike Type
Round Corner Full Lip
ADA Compliant
YES
Finish Family
Satin Nickel
Strike Size
1-5/8 x 2-3/4"
Standards
ANSI/BHMA A156.2-2011 Commercial Grade 3
Faceplate Dimension
1/4"
Function Description
Outside knob/lever locked by pushbutton on inside knob/lever. Rotating inside knob/lever or closing door releases/unlocks button. Emergency release in outside knob/lever.
Function Family
Privacy/Bedroom/Bathroom
Features
Fits on Pre-Drilled Holes; Lever fits with Exotic Wood Grain and Neon Signs; Installation with Screwdriver; Self-Aligning Screw
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
3.07x5.71x6.69
Lever Style Family
Straight With Return Lever
Sub-Series
RL_Lever_Locksets_schlage_residential_172
Material
Metal
Dimensions
2.44 in L x 5.39 in W x 2.63 in H
Handle Type
Lever
Faceplate Size
1 x 2-1/4"
Commercial/Residential
Residential
Backset Size
2-3/8 x 2-3/4"
Security Grade
Grade 3
Cross Bore Diameter
2-1/8"
Latch Housing Diameter
7/8"
Throw Length
1/2"
Nomenclature
J40TOR619 LEVER PRV SATNIC TOR
Bolt Throw Size
1/2"
Edge Bore Diameter
1"
Projection Size
1/2"
Lock Type
Mechanical
Dimension
4-1/2" Lever Length and 2-1/8" Projection with 2-5/8" Diameter Rose
Manufacturer Warranty
Limited Lifetime Mechanical and 5 Year Finish Warranty
Rose/Escutcheon Design
Round Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
2-1/4" x 1-5/8" x 1-1/8" Lip
Cross Bore Size
2-1/8" Bore
Finish code
619
Latch Faceplate Dimension
Round Corner 1" x 2-1/4" Faceplate or 1" Collar
Lever Knob Design
Torino Lever
No of inners
1
Product Overview
LEVER DOOR PRVCY SATNIC TORINO
Specifications:
Specifications:
Application: For residential single and multi family doors
Torino lever bed and bath lock in satin nickel.
