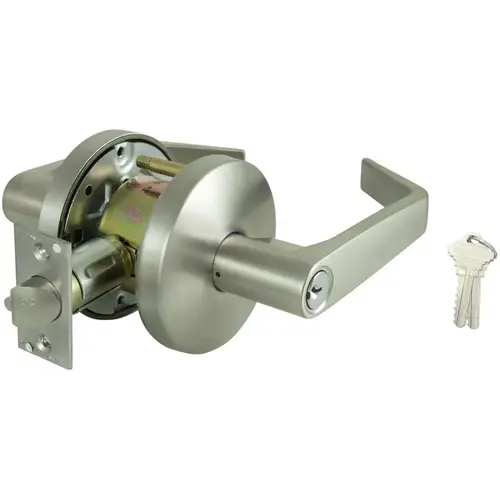

ProSource Y360CV-PS Door Entry Lever, 2 Grade, Keyed Different Key, Stainless Steel, Stainless Steel, 2-3/4 in Backset Silver
Item #: Y360CV-PS by Pro Source International
UPC #: 045734656956
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Keyway: Schlage SC1 6 Pin
- ANSI GRADE 2
- Commercial or heavy-duty residential security
- UL 3 hr fire rating
- For commercial buildings
Finish
Stainless Steel
Mounting Type
Screw
Material
Stainless Steel
Color
Silver
Door Thickness
1-3/8 to 1-13/16"
Cylinder Type
6-Pin
Faceplate Size
1-1/8 x 2-3/4"
Latch Type
Square Corner
Strike Type
ASA T-Style
Strike Size
47 x 125.6 45.4 x 70 mm
Backset Size
2-3/4"
Key Type
Different
Keyway type
SC1
Security Grade
2
Number of Cylinders
1
Cross Bore Diameter
2-1/8"
Nomenclature
LEVER ENTRY GRADE 2 S/S ZINC
Backset Type
Fixed
Bolt Throw Size
12.5 mm
Edge Bore Diameter
1"
Design
Lever
Handle Type
Lever
Commercial/Residential
Commercial
Throw Length
12.5 mm
Product Overview
LEVER ENTRY GRADE 2 S/S ZINC
Specifications:
Specifications:
Includes: (2) Keys
Suitable for: Commercial Use
ProSource Door Entry Lever is used for a keyed exterior door. Both levers lock or unlock by key outside or turn button inside. Consist of all metal components. Specifications : ANSI Grade: 2, Backset Size: 2-3/4 in, Edge Bore Diameter: 1 in, Cross Bore Diameter: 2-1/8 in, Door Thickness: 1-3/8 to 1-13/16 in., Cylinder Type: 6-Pin, Keyway Type: SC1, Key Type: Keyed Different, Latch Type: Square Corner, Faceplate Size: 1-1/8 x 2-3/4 in, Strike Type: T-Style, Strike Size: 1-1/8 x 2-3/4 in, Bolt Throw Size: 12.5 mm, Stainless steel.
