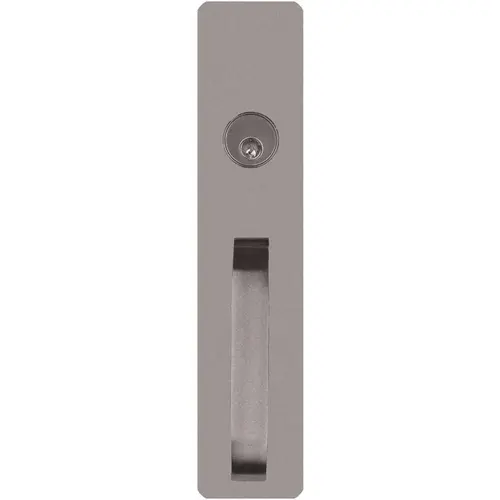

DETEX 03A 689 V Series Sprayed Aluminum Grade 1 Exit Trim, Night Latch Function, S Pull, Less Cylinder
Item #: 03A 689 by DETEX
UPC #: 840067656716
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Aluminum Painted
Function
Night Latch
Series
Value Series
Handing
Non-Handed
Color
Aluminum Painted
Color Code
689/US28
Fire Rated
No
Device Type
Rim or SVR
Trim Type
Nightlatch Pull
Base Material
VARIES
Cylinder Type
Conventional or IC
Finish Description
Aluminum Painted
Product Type
Exit Device Trim
Warranty
10 YR LIMITED
Pack Size
1
Manufacturer Warranty
10 year warranty
Builders Hardware Product Type
Exit Devices
Door Handing
Universal/Reversible
General Material
Steel
Hardware Finish Family
Metal
Product Depth (in.)
14
Product Height (in.)
5
Product Width (in.)
4
Trim Design
Escutcheon with Pull Handle
ADA Approved
False
UNSPSC
31162800
Trim Plate Height
13-1/2 Inch
Device Trim ANSI Function
03
Manufacturer Parent
Detex
For Use With
V40 Series Rim and V50 Series Surface Vertical Rods; BP2 and BP8
Hand
Non-Handed
Sub-Series
03A-689
Trim Style
Pull
ADA Compliant
No
Trim Plate Width
3-1/2 Inch
Device Trim Function
Entrance by Trim When Latch Bolt is Released by Key; Key Removable only When Locked
Function Family
Night Latch Exit Device Trim
Standards
ANSI/BHMA; California Title 19
Features
Heavy-Duty; Covers 161 Prep
Product Material
Steel
Cylinder Type Used
Rim
Finish Family
Aluminum
Alternate Part Number-1
190711
Includes Cylinder(s)
No
Hazardous Material
No
Finish code
689
No of inners
1
Product Overview
Value SeriesOUTSIDE TRIM DESIGNS
A and AN Trim
BHMA Function/Description
Assorted outside trims provide security for all types of installations. Built to be as durable as the panic devices, these heavy-duty trims will stand up to heavy use and abuse. The versatile design of the trims, combined with the device mounting plate, makes changing functions as simple as replacing the outside trim. This can easily be done without removing the exit device from the door. These trims can be used on V40 Series Rim and V50 Series Surface Vertical Rods. Detex uses the BHMA functions/descriptions for all trims.
A and AN Trim
- A Trim Covers 161 Prep
- AN Trim Does Not Cover 161 Prep
- A/AN Trims are Steel Stampings
BHMA Function/Description
- 03 - Entrance by trim when latchbolt is released by key. Key removable only when locked.
