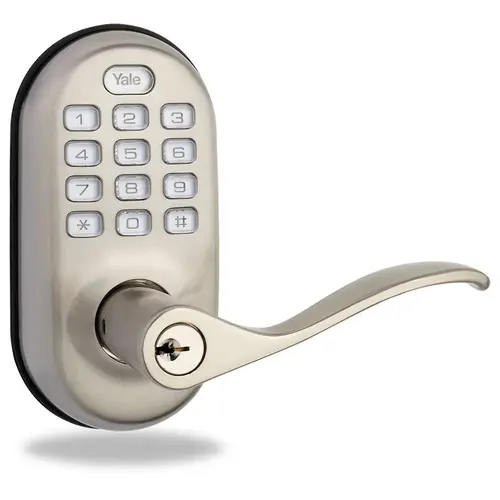

Push Button Lever Lock with Z-Wave Satin Nickel Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Yale Real Living YRL210ZW619 Push Button Lever Lock with Z-Wave Satin Nickel Finish

Item #: YRL210ZW619 by Yale Commercial

Item Discontinued!
See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Installs within minutes on standard doors with just a screwdriver.
  • Integrates into your Z-Wave home automation or security system
  • Create up to 250 unique pin codes to share with family and friends (25 with no controller)
  • Monitor, lock and unlock from anywhere (*Varies depending on controller)
  • Voice guided programming in English, French or Spanish
  • Push Button
  • 4 AA Alkaline Batteries (Included)
  • Reversible
  • Provide Versatility and Convenient Access
  • The Next Generation of Electronic Residential Locks from Yale
  • An Interactive Touchscreen or Keypad Makes Day to Day Access Effortless
  • 1-3/8" to 2-1/4" Door Thickness
  • ANSI / BHMA A156.36 Grade 2

Finish

Satin Nickel

Function

Electronic

Series

Real Living

Design

Push Button

Strike

1-1/8" x 2-3/4" Round Corner Strike

Backset

2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4"

Door Thickness

1-1/2", 1-3/4", 1-3/8", 1-5/8"

Collection

Real Living

ANSI Approved

Yes

ANSI Certification

A156.36

Backplate Width

2.75

BHMA Certification

Grade 2

Cross Bore

2-1/8"

Cylinder

5 Pin KW1

Cylinder Type

Single Cylinder

Edge Bore

1"

Lit Keypad

Yes

Motorized Deadbolt

Yes

Number of Codes

25

Panic Proof

No

Remote Access

Yes

Rosette Shape

Arch

Smartphone Enabled

Yes

Usage Monitoring

Yes

Wireless Communication

Z-Wave

Interior Width

3.125

Backplate Height

6.75

Interior Projection

4

Latch Faceplate

Round Corner

Configuration

Door Lever

Projection

3.25

Product Class

Residential

Handing

Left, Reversible, Right

Theme

Transitional

Product Overview
Push Button Lever Lock with Z-Wave Satin Nickel Finish
