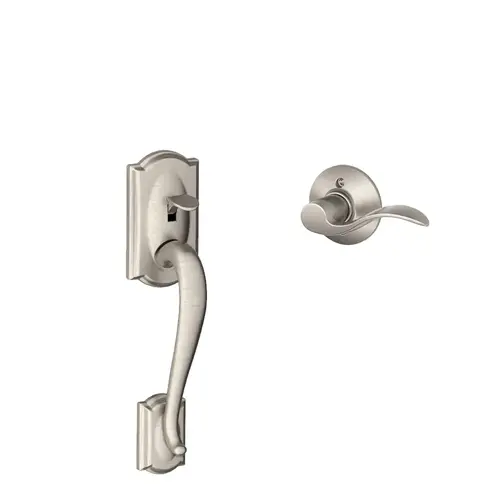

Schlage Residential FE285 CAM619ACC RH Right Hand Camelot with Accent Lever Bottom Half Handleset with 16080 Latch and 10063 Strike Satin Nickel Finish
Item #: FE285 CAM619ACC RH by Schlage Residential
Brand: Schlage Residential
UPC #: 043156217458
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Lower Half - Front Entry Handleset - Combine with BE365 Keypad Deadbolt for Complete Front Entry Set
- Applications: Residential single and multi-family entrance doors.
- Exterior Active Handleset - Outside Grip & Deadbolt Trim of F60; Order with F59 for Complete Handleset
- Keying: F-Series handlesets are 5-pin tumbler with two keys per lock.
- Backset: Universal latches and deadbolts fit 2-3/8" (60mm) or 2-3/4" (70mm) backsets.
- One-Tool Installation - Installs with Just a Phillips Screwdriver
- Right Hand
- Patented Throughbolt Slides Up and Down So You Don't Have to Patch/Redrill Your Door
- Lifetime Mechanical & Finish Warranty
- Certified Commercial Grade 1
- Graded Best in Residential Security, Durability, and Finish
Finish
US15 Satin Nickel (619)
Backset
Dual Option, Round or Drive In, Adjustable Spring Latch, 2-3/8" or 2-3/4" Backset
Handing
Reversible
Function
Passage Handleset
Strike
10-269 Strike
Design
Camelot With Accent Lever
Series
FE285 Series
Color
Satin Nickel Plated Clear Coated
Color Code
619/US15
Lever Style
Birmingham
Latch
12-326 latch
Trim Style
Camelot
Product Type
Keypad Handleset
Grade
ANSI/BHMA Grade 1
Application
Can Be Used With New or Existing Deadbolt or Electronic Deadbolt
Hand
Right Hand
Warranty
Lifetime Limited Mechanical/Finish
Door Thickness
1-5/8" to 1-3/4"
Mount
Sectional
Handle Style
CAM-Camelot
Finish Description
Satin Nickel
Product Length
5.156 Inches
ADA Compliant
YES
Finish Family
Satin Nickel
Included Components
Outside Grip Handle; Inside Trim; Latch; Strike; Mounting Hardware
Rose/Escutcheon Trim
Arch Escutcheon/Round Rose
Door Cross Bore
2.125 Inch
Product Material
Zinc
Standards
ANSI/BHMA A156.36-2016; ANSI/BHMA A156.40-2015
Function Family
Handleset Lower Half
Features
Replaces Virtually Any Existing Handleset; Easy Installation: One-Person Project; No Extra Hands Needed; Designs and Finishes to Match Any Homes Architectural Style
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
3.88x8x16.25"
Lever Style Family
Wave Lever
Sub-Series
FE285-CAM-ACC-RH
Dimension
4-1/8" Lever and 2-1/4" Projection with 2-3/4" Diameter Rose
Material
Zinc
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Rose/Escutcheon Design
Plymouth Rose
Door Range
1-5/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
1-5/8" x 2-1/4"
Cross Bore Size
2-1/8" Bore
Finish code
619
Latch Faceplate Dimension
1" x 2-1/4"
Lever Knob Design
Accent Lever
No of inners
1
Keyed
No
Handle Type
Lever
Handle Design
Accent Lever
Electronic
No
Lever/Knob Design
Accent Lever
Door Handing
Non-Handed
Standard Strike
10-027: Full Lip Radius Strike, 2-1/4" x 1-5/8"
Substrate Type
Zinc and Steel
Door Thickness Range
1-3/8" To 1-3/4"
Trim Hardware
Camelot
Segment
Door Hardware
Standard Latch
16-080: Spring Latch, Dual Option (Round, Drive-in)
Projection
2-1/4"
Product Overview
Lower Half Handleset, Camelot Style, Accent Lever, Satin Nickel
Your front door is more than just an entrance, it's also a showpiece Ð one of the first things a guest sees. That's why it's important to choose the right handleset. Schlage offers a wide variety of designs and finishes, from angular to flowing, classic to contemporary, all designed to ensure that your front door is the perfect introduction to your home.
Patented throughbolt slides up and down.
