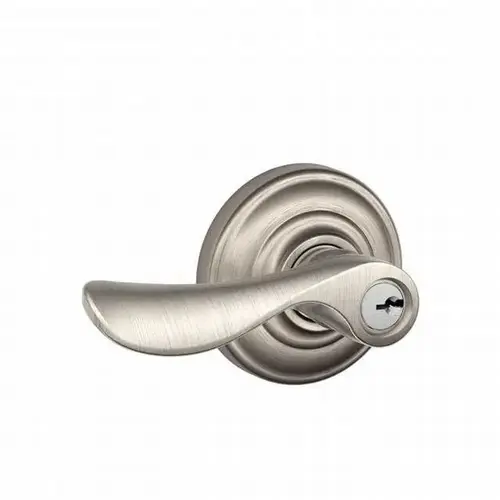

Schlage Residential F80 CHP 619 AND RH Right Hand Champagne Lever with Andover Rose Storeroom Lock C Keyway with 16211 Latch and 10063 Strike Satin Nickel Finish
Item #: F80 CHP 619 AND RH by Schlage Residential
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Storeroom Function - Outside Knob/Lever Fixed; Entrance by Key Only; Inside Knob/Lever Always Unlocked
- Applications: Residential single- and multi-family doors
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Box Pack
- Right Hand Doors
- U.L. Listed: Locks for up to three-hour fire doors available
- Includes All Mounting Hardware for Easy Installation
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
- Limited Lifetime Mechanical and Finish Warranty
- ADA compliant: Yes
Backset
Triple Option Adjustable Dead Latch, 2-3/8" or 2-3/4" Backset
Design
Champagne Lever With Andover Rose
Finish
Satin Nickel
Function
Storeroom
Handing
Right Hand
Series
F Series
Strike
Round and Square Corner Full Lip Strikes
Color
Satin Nickel Plated Clear Coated
Color Code
619/US15
Grade
ANSI/BHMA Grade 2
Application
Residential entry and side doors or anywhere where keyed security is needed.
Hand
Right Hand
Warranty
Limited Lifetime Mechanical and Finish Warranty
Keyway
Schlage C
Door Thickness
1-3/8" to 1-3/4"
Bolt Throw
1/2 Inch
Cylinder Type
Conventional Cylinder
Latch Throw
1/2 Inch
Finish Description
Satin Nickel
ANSI Function
F86
Latch Type
Deadlatch
Strike Number
10-027
Strike Type
Radius, Full Lip
ADA Compliant
YES
Finish Family
Satin Nickel
Included Components
Keyed Storeroom Knobs/Levers, Roses, Latch, Strike, Mounting Hardware
Knob style
AND-Andover
Lever Style
CHP-Champagne
Strike Size
1-5/8 x 2-1/4 Inch
Rose/Escutcheon Trim
AND-Andover
Door Cross Bore
2.125 Inch
Product Material
Zinc
Strike Name
Round Corner Full Lip
Standards
ANSI/BHMA A156.39-2015; UL Listed
Faceplate Dimension
1" x 2-1/4"
Door Preparation
Cross Bore 2-1/8"; Edge Bore 7/8"
Function Description
Outside knob/lever always locked. Entrance by key only. Inside knob/lever always unlocked.
Front Size
1" x 2-1/4"
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Storeroom
Features
Highest Industry Ratings for Residential Security, Durability and Finish; Installs in Minutes; Reversible Levers
Product Type
Cylindrical Lock
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Knob Style Family
Round Flat Knob
Lever Style Family
Wave Lever
Sub-Series
F80-CHP-AND-RH
Dimension
4-9/32" Lever and 2-3/4" Projection with 2-3/4" Diameter Rose
Material
Zinc
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Rose/Escutcheon Design
Andover Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
1-5/8" x 2-1/4"
Cross Bore Size
2-1/8" Bore
Finish code
619
Latch Faceplate Dimension
1" x 2-1/4"
Lever Knob Design
Champagne Lever
No of inners
1
No Of Pins
5 Pin Cylinder
Product Overview
Storeroom Lock, Champagne Lever, Andover Rose, Satin Nickel
From classic looks that never go out of style to bold contemporary designs, Schlage's levers and door handles fit and accentuate virtually any dcor. Available in a variety of functions, you can choose the perfect look for every room in your house - it's the easiest way to give your entire home a style upgrade.
Easy 3-step installation, only a screwdriver needed.
Schlage's F Series designs range from bold to classic to match any residential décor. Plus, it features an easy 3-step installation, only a screwdriver needed.
