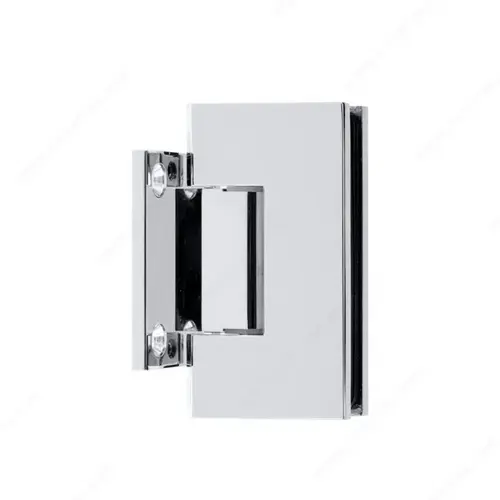

Riveo SH1HSQ90SW140 Pro Square Heavy-Duty GTW Hinge w/ Short Back Plate Bright Polished Chrome
Item #: SH1HSQ90SW140 by Riveo
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Bright Polished Chrome
Material
Solid Brass/Stainless Steel Pin & Spring
Style
Square
Application
Corner Shower, Door, Door and Panel
Angle
90°
Glass Thickness
13/32 to 15/32 in
Hinge Type
Standard
Collection
Riveo Pro
Mounting Method
Wall Mount
Max. Glass Weight for 2 Hinges
Max. 99.2 lb
Max. Glass Weight for 3 Hinges
Max. 150 lb
Max. Glass Width for 2 Hinges
Max. 30 in
Max. Glass Width for 3 Hinges
Max. 36 in
Product Overview
This self-closing hinge is designed to install a glass door to an adjacent wall.
The short back plate facilitates the installation on pony walls as well as allowing for glass to be cut deeper so that the panel can be installed closer to the wall.
Riveo Pro offers the widest range of styles and finishes to complement any project.
Advantages And Benefits
Self-closing from 30 degree angle
Application
Designed to be used with several thicknesses of tempered glass.
Regular-duty models require "mouse-ear" type glass milling for installation.
Heavy-duty models require square type glass milling for installation.
Important Information
For safety purposes, use tempered glass.
The glass must be shaped according to the section plane.
Always set the product in a suitable material.
Never exceed the load or maximum size recommended by the manufacturer.
Always order hardware before starting the job. The manufacturer reserves the right to change product and information without notice. Always follow the instruction manual provided in the packaging.
The drawings and technical instructions show mounting examples using hardware from different manufacturers. Richelieu expressly declines all responsibility for any design or construction based on these documents. Installation must be done by qualified personnel.
Disclaimer
The preceding information as well as any technical recommendation given in writing, verbally or based on tests is provided to the best of our knowledge. However, recommendations are non-binding and do not diminish your responsibility for determining the correctness of these recommendations and the suitability of the product for your particular purpose. The application, use or processing of our products as well as the production of products based on our technical recommendations are beyond our control and therefore exclusively your responsibility. Sales of our products are subject to our most recent General Sales and Delivery Conditions. Please note that Richelieu will not accept any returns or claims for unpackaged products.
