30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Construction – Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
- Backset – 2-3/8" (60.31mm) or 2-3/4" (69.85mm).
- Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
- Latch – Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions.
- Latch Front – 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
- Exposed Trim – RK Roses are wrought brass 2-1/2" (63.5mm) diameter. Total projection from face of door is 2-3/4" (69.85mm).
- Strike – 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.
- Cylinder – Solid brass 6 pin. Arrow "A" keyway standard. Available in Schlage CS keyway and other competitive keyways.
- Keys – 2 brass keys.
- Handing – Non-handed.
- Thru-bolts – Removable thru-bolts standard on RL Series.
- Packaging– 10 per case.
- Warranty – Five Year Mechanical Warranty
Screws
Combination
Special Marks
Fire rated 3 Hours {A}
Strike Height
2-3/4"
Strike Number
R60
Strike Type
T - Standard
Latch Backset Dim
2-3/8"
Bolt Protection
1/2"
ANSI Function
F76 - Privacy
Package Width
3.625
Package Volume
92.77734375
Package Length
7.875
Package Height
3.25
Fire Rated
3 Hours {A}
Function
02-Privacy
Color Code
612/US10
Color
Satin Bronze
Hand
Not Handed
Thickness
1-3/8" - 1-3/4"
Latch Number
R72
Latch Type
Spring Latch (Unguarded)
Lever/Knob Design
B - Ball
Lock Face Size
2-1/4" x 1"
Package Qty
1
Product Height
2.125"
Product Length
2.75"
Product Width
2.5"
Rose/Escutcheon Design
D - Rose
Strike Width
1-1/8"
Base Material
Bronze
Origin
Taiwan
Finish
612 - Satin Bronze
Grade
Grade 2
ANSI/BHMA Standards
F76A
Keyed
No
Handle Type
Knob
Latch Faceplate
1" x 2-1/4"
Latch Throw
1/2"
Door Handing
Non-Handed
Standard Strike
R60 T-Strike, 2-3/4" x 1-1/8"
Door Thickness Range
1-3/8" To 1-3/4"
Fasteners
Wood and Machine Screws
Lock Type
Cylindrical
Standard Latch
R72 Springlatch; 2-3/8" Backset
Product Overview

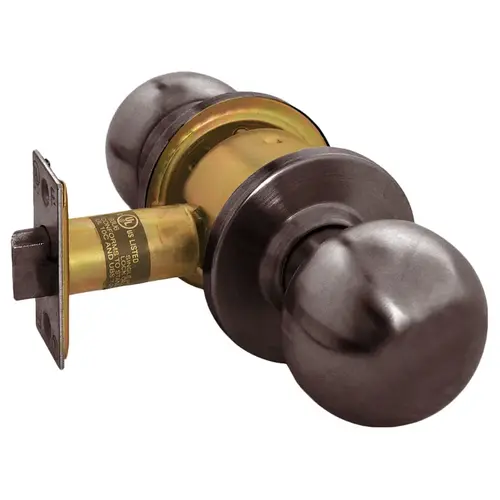

Privacy Knob Lock, B Knob, D Rose, Satin Bronze
The RK Series has been enhanced to offer a wide variety of finishes and functions. The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.
The Arrow RK Series offers a wide variety of finishes and functions.
The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.
